Header Rules

We have introduced Header rules by which application owners can manipulate request headers, cookies, in request as well as response headers. Users can create/update header rules at run time with on-the-fly updates. It has the functionality to add/remove/update any cookie/header in the request to the web-server (back-end) as well as respond to the client.

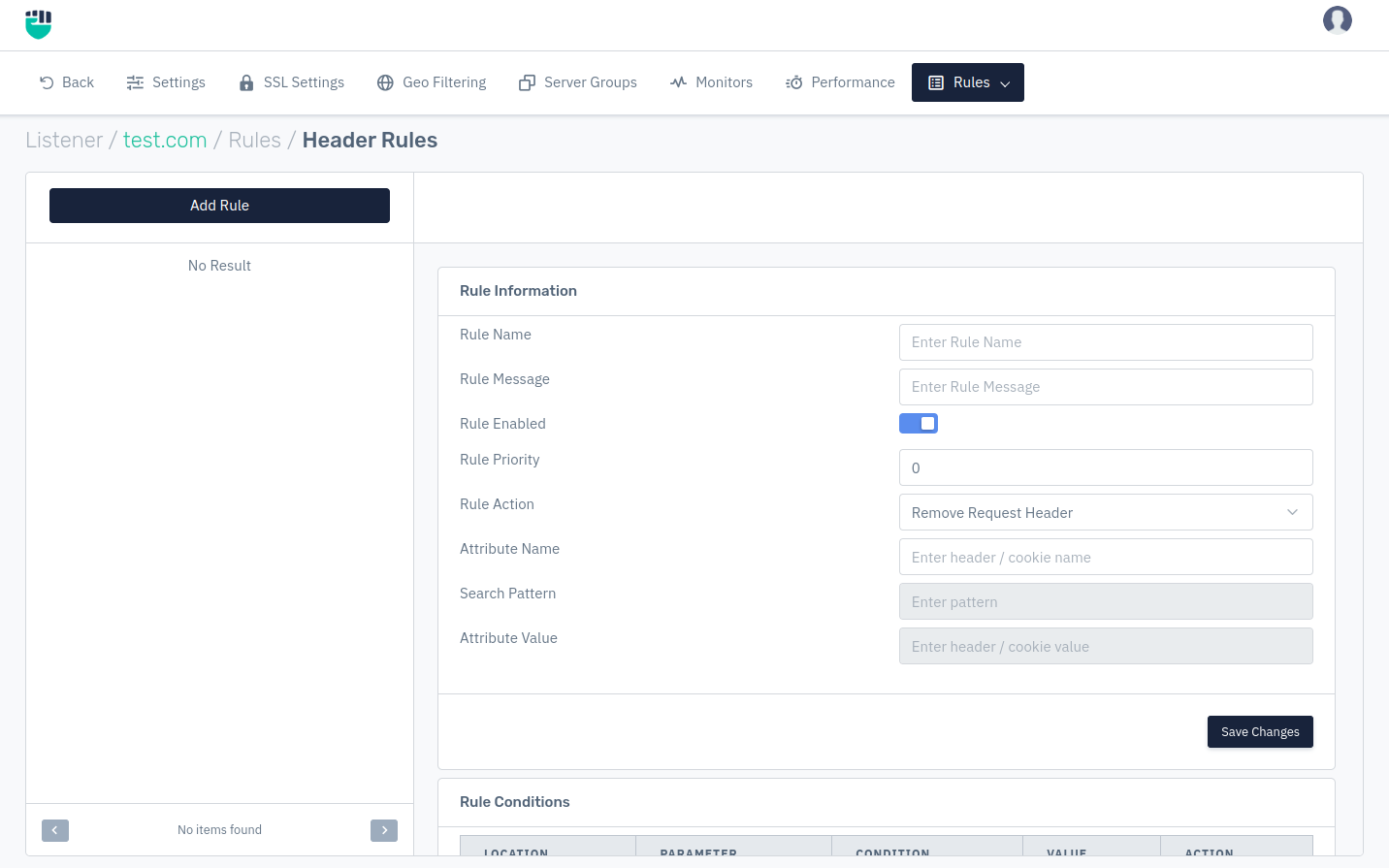

headerrules

How to Use:​

  1. Go to Stack > SLB > Listeners > Rules.
  2. Select the Header Rule.
  3. Click Add Rule button.
  4. Configure your settings.
  5. Click Save Changes.

Description:​

Rule Name​

Specify a rule name to identify the rule which is to be created. The rule name takes alphanumeric input.

    Accepted values: String

    Default: Blank
Message​

Specify a rule message containing a detailed description to identify the rule which is to be created.

    Accepted values: String

    Default: Blank
Rule Enabled​

Users can enable or disable the rule.

    Accepted values: Enabled / Disabled

    Default: Enabled
Rule Priority​

User can define the rule's priority among various other custom error rules.

    Accepted values: Integer

    Default: Blank
Rule Action​

The rule action determines what action (add/remove/overwrite) the rule will perform. The accepted values are:

    Accepted values: ADD HEADER / ADD COOKIE / OVERWRITE HEADER / OVERWRITE COOKIE / REMOVE HEADER / REMOVE COOKIE

    Default: REMOVE COOKIE

  1. ADD: This condition will allow adding a value at the specified location.

  2. REMOVE: This condition will allow removing a value at the specified location.

  3. OVERWRITE: This condition will allow overwriting a value at the specified location.

If the action is ADD then another field is required I.e., Value that will be added for the specified Parameter.

If the action is REMOVE, then the specified parameter is removed.

If the action is OVERWRITE, then two other fields are required first is Search Pattern (string/regex that should match the existing value) and Replace (the string that should be overwritten). We can capture string from the PCRE capturing group using position with a prefix of '$'.

Add Condition​

The user can specify some request/response-based conditions which can be used as mandatory conditions to be fulfilled to apply the rule.

To configure the parameter of the conditions please refer to the following link: Conditions
