Header Rules
We have introduced Header rules by which application owners can manipulate request headers, cookies, in request as well as response headers. Users can create/update header rules at run time with on-the-fly updates. It has the functionality to add/remove/update any cookie/header in the request to the web-server (back-end) as well as respond to the client.
How to Use:

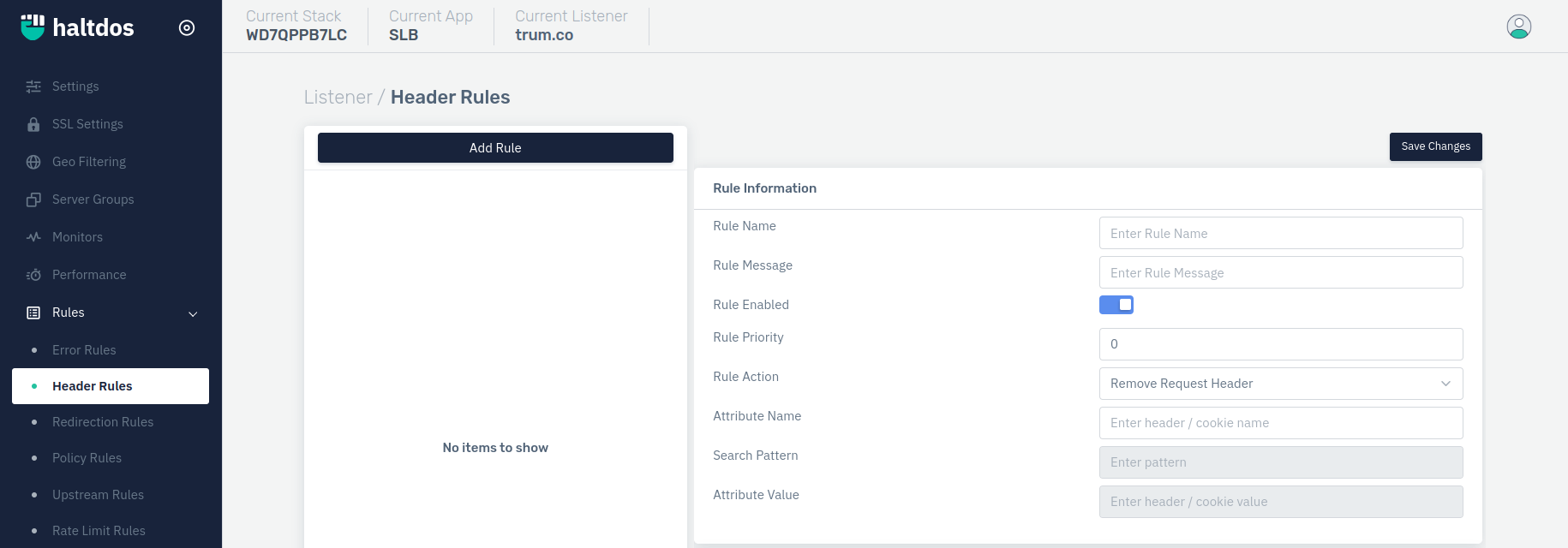

- Go to Stack > SLB > Listeners > Rules.
- Select the Header Rule.
- Click Add Rule button.
- Configure your settings.
- Click Save Changes.
Description:
Rule Name
Specify a rule name to identify the rule which is to be created. The rule name takes alphanumeric input.
Accepted values: String
Default: Blank
Message
Specify a rule message containing a detailed description to identify the rule which is to be created.
Accepted values: String
Default: Blank
Rule Enabled
Specify a rule message containing a detailed description to identify the rule which is to be created.
Accepted values: Enabled / Disabled
Default: Enabled
Rule Priority
User can define the rule's priority among various other custom error rules.
Accepted values: Integer
Default: Blank
Rule Action
The rule action determines what action (add/remove/overwrite) the rule will perform. The accepted values are:
Accepted values: ADD HEADER / ADD COOKIE / OVERWRITE HEADER / OVERWRITE COOKIE / REMOVE HEADER / REMOVE COOKIE
Default: REMOVE COOKIE
-
ADD: This condition will allow adding a value at the specified location.
-
REMOVE: This condition will allow removing a value at the specified location.
-
OVERWRITE: This condition will allow overwriting a value at the specified location.
If the action is ADD then another field is required I.e., Value that will be added for the specified Parameter.
If the action is REMOVE, then the specified parameter is removed.
If the action is OVERWRITE, then two other fields are required first is Search Pattern (string/regex that should match the existing value) and Replace (the string that should be overwritten). We can capture string from the PCRE capturing group using position with a prefix of '$'.
In order to escape the dollar($) character in the replace, add the dollar symbol twice.
Attribute Name
Specify the attribute name which need to add/delete/overwrite with rule.
Accepted values: String
Default: Blank
Search Pattern
Specify the attribute name which need to add/delete/overwrite with rule.
Accepted values: String
Default: Blank
Attribute Value
Specify the attribute value which will be mentioned in the attribute.
Accepted values: String
Default: Blank
Add Condition
The user can specify some request/response-based conditions which can be used as mandatory conditions to be fulfilled to apply the rule.
To configure the parameter of the conditions please refer to the following link: Conditions
