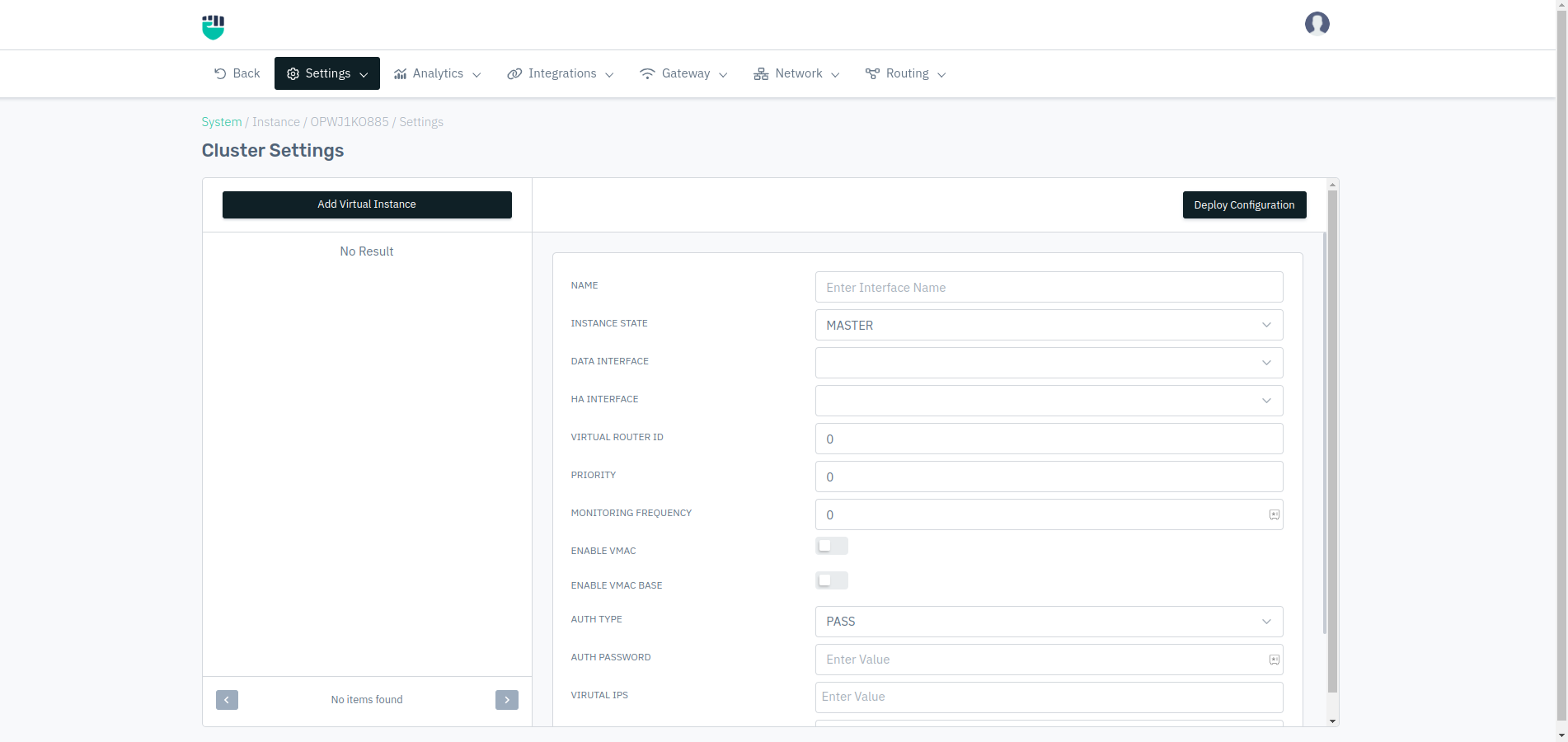

Cluster Settings

The Cluster Setting is used to configure High Availability (HA) in the Active-Passive (AP) or Active-Active (AA) mode across multiple instances. This setup ensures that if the primary (active) instance fails, a secondary (passive) instance automatically takes over to minimize downtime and maintain service continuity.

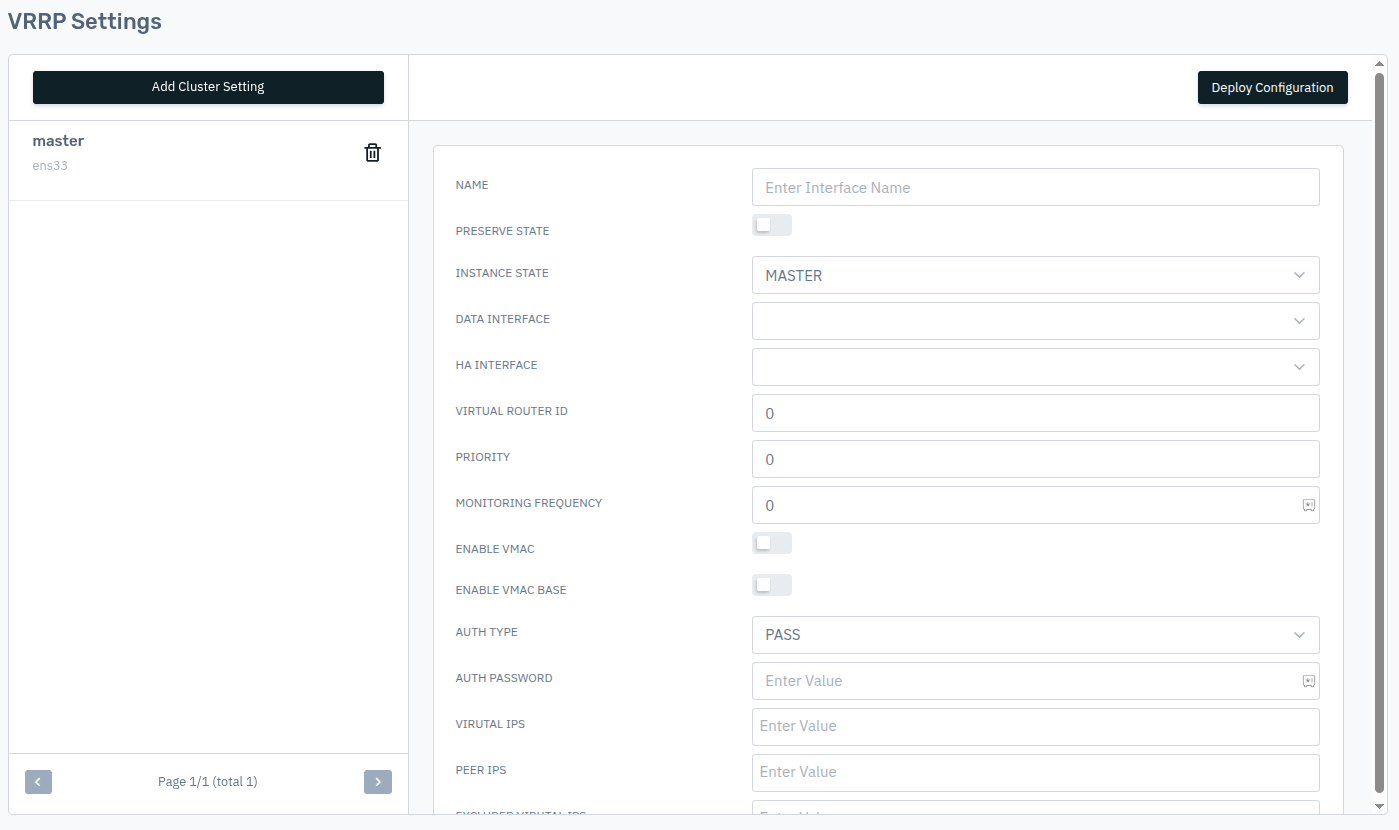

HA Settings

How to Use:​

  1. Go to Stack > Instances > Cluster Settings
  2. Configure your settings
  3. Click Save Changes

Description​

Name​

Enter the cluster name

    Accepted values: String

    Default: Blank
Instance State​

Indicates whether the instance is currently active (primary) or passive (standby) in the HA configuration.

    Accepted values: Master / Backup

    Default: 5
Data Interface​

The network interface designated for handling data traffic between active and passive instances in the HA setup.

    Accepted values: eth0

    Default: eth0
HA INTERFACE​

The dedicated network interface used exclusively for communication and synchronization between instances in a high availability (HA) configuration.

    Accepted values: eth0

    Default: eth0
VIRTUAL ROUTER ID​

A unique identifier assigned to a virtual router in an HA setup, allowing network devices to recognize the active instance for traffic routing.

    Accepted values: Integer

    Default: 0
Priority​

Select the priority

    Accepted values: Integer

    Default: 0
Monitoring Frequency​

Specifies how often the health and status of each instance are checked to detect failures or changes in the HA configuration.

    Accepted values: Integer

    Default: 0
Enable VMAC​

Allows the use of a Virtual MAC address for seamless failover in HA.

    Accepted values: Enable / Disable

    Default: Disable
Enable VMAC Base​

Configures the base MAC address for the Virtual MAC (VMAC) used in the HA setup for consistent failover.

    Accepted values: Enable / Disable

    Default: Disable
AUTH TYPE​

Specifies the authentication method used for securing communication between HA instances, such as passwords or keys.

    Accepted values: PASS / AUTH

    Default: PASS
Auth Password​

The password used for authenticating communication between HA instances based on the selected authentication type.

    Accepted values: PASS / AUTH

    Default: PASS
VIRUTAL IPS​

The IP addresses assigned to the virtual router in the HA setup, allowing clients to connect to the active instance regardless of failover.

    Accepted values: IPs

    Default: Blank
PEER IPS​

The IP addresses assigned to the passive (standby) instance in the HA setup, used for communication between the active and passive instances.

    Accepted values: IPs

    Default: Blank
Excluded Virtual IPS​

The list of virtual IP addresses that are excluded from failover or management by the HA system.

    Accepted values: IPs

    Default: Blank
