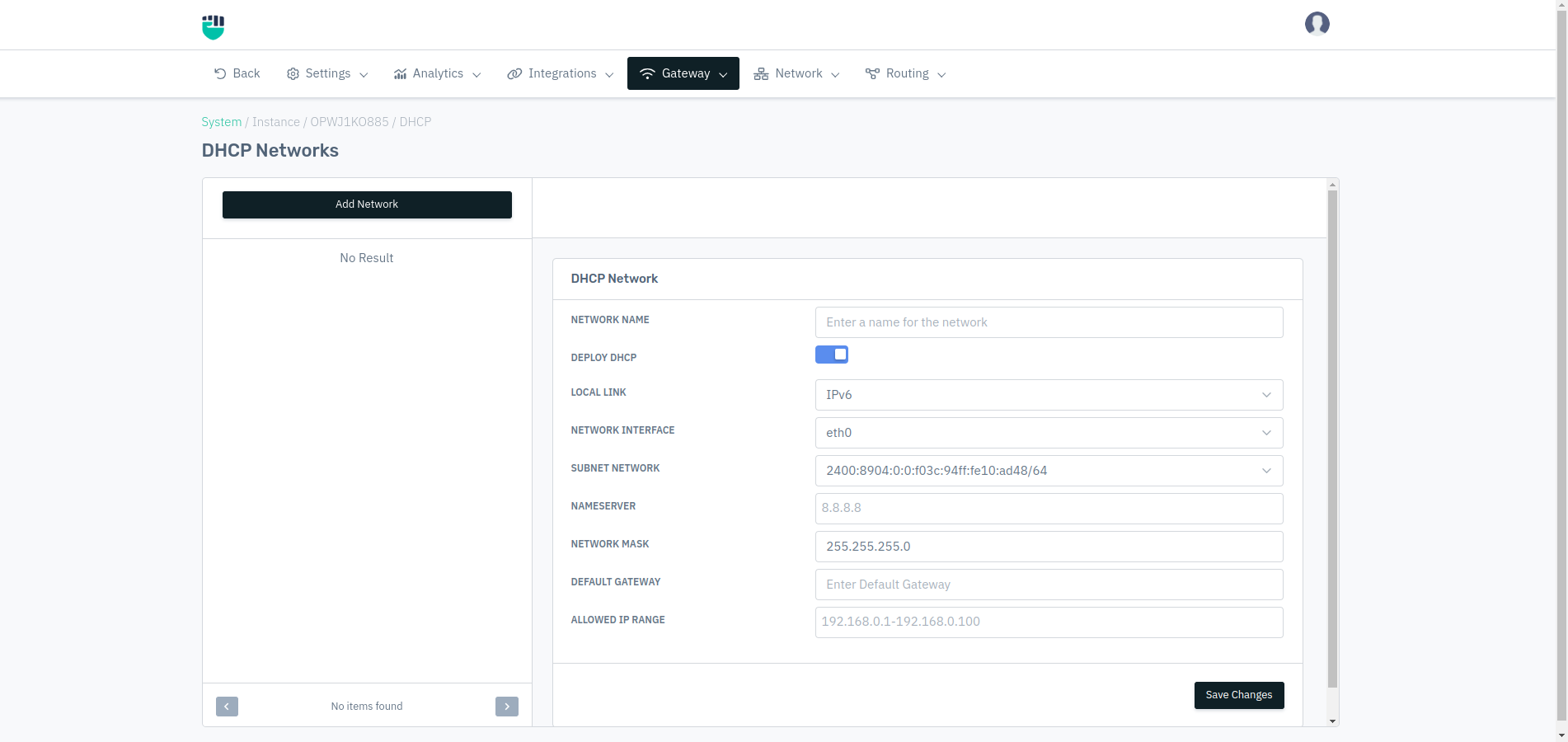

DHCP Networks

This section details how to configure the Haltdos solution as a DHCP server for assigning IP addresses.

How to Use:

1. Go to Stack > Instances > > DHCP
2. Configure your settings
3. Click Save Changes

Description

Network Name

This option allows users to set the desired name for the network setting.

    Accepted values: String

    Default: Blank

Network Name

Select to deploy dhcp or not

    Accepted values: Enable / Disable

    Default: Enable

Local Link

This option allows users to set whether they wanted to use IPv4 or IPv6. by default IPv4 is selected.

    Accepted values: IPv4 / IPv6

    Default: IPv4

Network Interface

This option allows users to set a network interface for DHCP configuration. Users can add an Interface on which DHCP service dynamically assigns an IP address and other network configuration parameters to each device on a network so they can communicate with other IP networks.

    Accepted values: eth0

    Default: eth0

Subnet Network

This feature allows you to share the subnet mask for the subnetwork.

    Accepted values: Select Sub Network

    Default: Blank

Nameserver Name Server refers to the server component of the Domain Name System (DNS), one of the two principal namespaces of the Internet. The most important function of DNS servers is the translation (resolution) of human-memorable domain names (example.com) and hostnames into the corresponding numeric Internet Protocol (IP) addresses (93.184.216.34), the second principal namespace of the Internet, which is used to identify and locate computer systems and resources on the Internet.

    Accepted values: Select Server

    Default: Blank

Network Mask

This option allows users to set the network mask which will be assigned to devices on the network.

    Accepted values: Integer

    Default: Blank

Default Gateway

This option allows users to set the default gateway IP as it will be assigned to devices in the network.

    Accepted values: String

    Default: Blank

Allowed IP range

Select Allowed IP Range

    Accepted values: IP

    Default: Blank

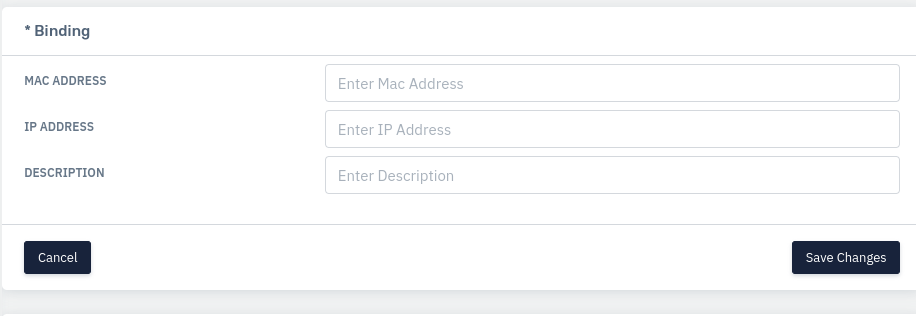

Mac IP Binding

Mac-binding essentially means binding together the MAC and IP addresses, so that all requests from that IP address are served only by the computer having that particular MAC address. In effect, it means that if the IP address or the MAC address changes, the device can no longer access the Internet.

PARAMETERS	ACCEPTED VALUES	DEFAULT
MAC Address	String	Empty
IP Address	IP String	Empty
Description	String	Empty

Description

MAC Address

This option allows users to mention the MAC address which need to be bind with a IP address for MAC IP Binding.

IP Address

This option allows users to mention the IP address which need to be bind with MAC Address.

Description

This field allows users to mention a short description about the MAC IP binding or the reason for the binding.
