Transform Rules

Transform Rule allow user to adjust or transform multiple attributes on there application. Like, User can Replace or Remove any parameter per there need. Even User can transform parameter of there application like from XML to JSON or JSON to XML also.

Under Transform Rule user can even transform certain protocol like HTTP to MQTT. MQTT is a standards-based messaging protocol, or set of rules, used for machine-to-machine communication.

Transform Rule allow user to do HTML encoding because it ensures that text will be correctly displayed in the browser, not interpreted by the browser as HTML

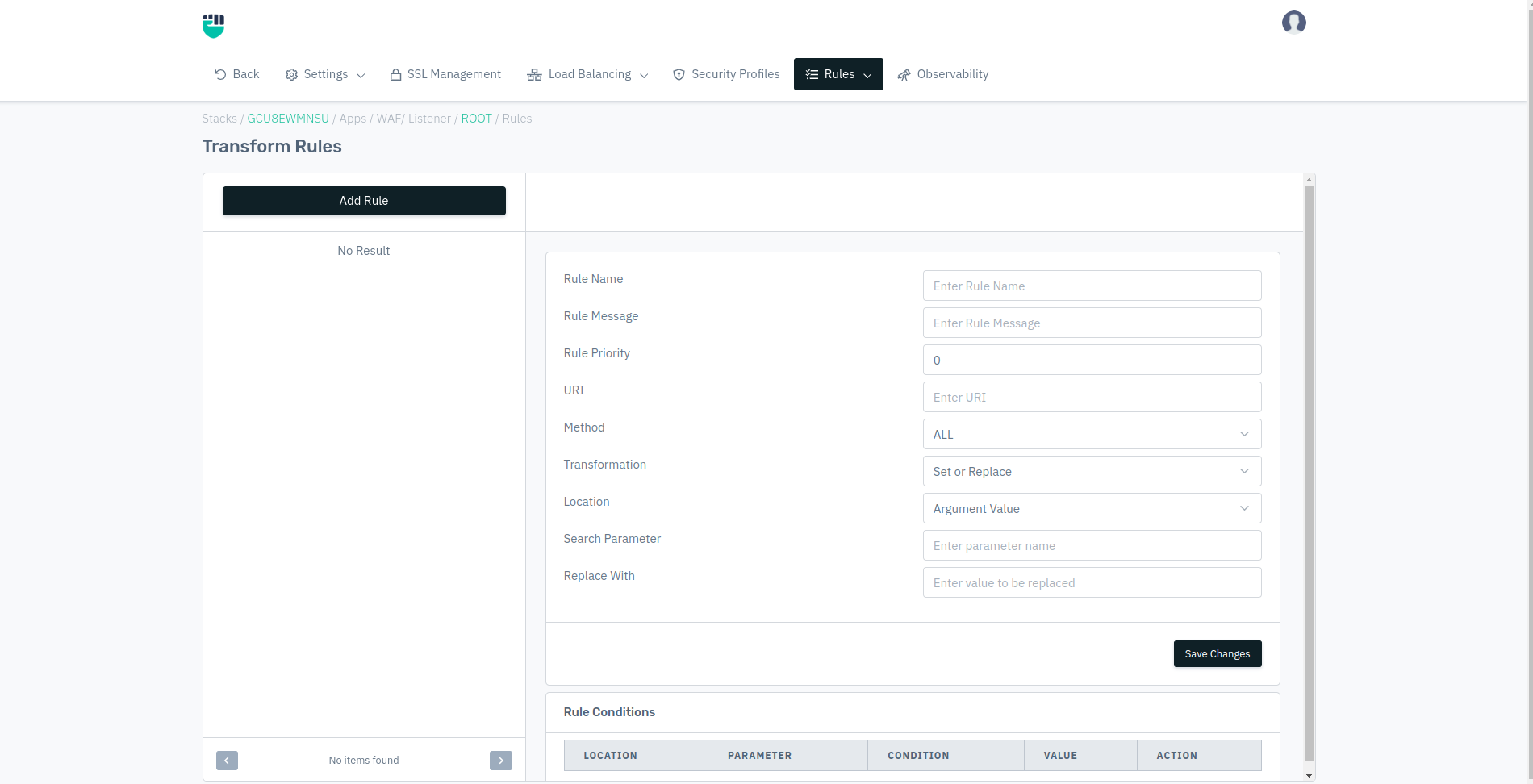

Overview

How to Use:

1.Go to WAF > Listeners > Rules > Transform Rule
2.Configure the Rule and Rule Condition.
3.Click on Save Changes

Description

1.Rule Name :

Specify a user-friendly name to identify the rule. The rule name takes alpha-numeric input.

    Accepted values: String

    Default: Blank

2.Rule Message :

The user can add a short description of the rule. The description would explain the purpose of the rule.

    Accepted values: String

    Default: Blank

3.Rule Priority:

Set the priority of the rule. If two rules have the same priority, then selection will be random.

    Accepted values: Integer

    Default: 0

4.URI:

Specify the URI or regex for which rule will be applied.

    Accepted values: URI

    Default: Blank

5.Method:

Select the HTTP method for the rule to validate when matched with the request.

    Accepted values: ALL / GET / POST / PUT / DELETE / PATCH / HEAD / OPTIONS

    Default: ALL

6.Transformation:

Under this user can select which transform he wants eg. HTTP to MQTT, XML to JSON or JSON to XML. Under this user can also set, replace or remove any parameter of there application.

    Accepted values: XML to JSON / JSON to XML / HTTP to MQTT / HTML Encode / Set or Replace / Remove Argument

    Default: Set or Replace

6.1XML to JSON- An element mentioned in XML can be transform to JSON user just have to provide the location like whether it will be argument name, argument value,body ,body argument name , body argument value and Parameter Name.

6.2JSON to XML- An element mentioned in JSON can be transform to XML user just have to provide the location like whether it will be argument name, argument value,body ,body argument name , body argument value and Parameter Name.

6.3 HTTP to MQTT- Under this transformation user can convert the protocol service from HTTP to MQTT.

6.4 HTML Encode- HTML Encode ensures that all the elements and text will be correctly displayed in the browser.

7.Location:

Location provides the path on which transformation rule is going to work.

    Accepted values: Argument Value / URL / Body Argument Value / Body

    Default: Argument Value

8.Search Parameter

User have to specify the parameter name of which transform rule will work.

    Accepted values: String

    Default: Blank

9.Replace With

Replace option comes only in use when the transformation is SET, REPLACE, HTTP to MQTT or HTML Encode

    Accepted values: String

    Default: Blank

Add Condition

The user can specify some request/response-based conditions which can be used as mandatory conditions to be fulfilled to apply the rule.

To configure the parameter of the conditions please refer to the following link: Conditions
