Load Balancing

Overview​

Load balancing across multiple application instances is a commonly used technique for optimizing resource utilization, maximizing throughput, reducing latency, and ensuring fault-tolerance configurations.

Load Balancing Algorithms​

This field specifies the load balancing algorithm according to the configured website.

  1. ROUND ROBIN: This algorithm is a smart approach to distribute client requests across an array of servers. It forwards the client request to each server in turn. Also, assigns a weight to each server as per current load and idle capacity.

  2. LEAST CONNECTIONS: This algorithm is a dynamic load balancing algorithm. It forwards client requests to the server, which has the least no. of active connections on the server.

  3. LEAST RESPONSE TIME: This algorithm is a dynamic load balancing algorithm. It forwards client requests to the server, which have used least bandwidth for serving the client requests.

  4. LEAST BANDWIDTH:This algorithm is a dynamic load balancing algorithm. It forwards client requests to the server, which have a small response time in order to serve requests.

  5. IP HASH: This algorithm takes the client's and server's source and destination IP address to generate a unique hash key. This key is used to assign the client to a specific server. In the case of a broken session, the key can be regenerated, and the client can be directed to the same server.

  6. PERSISTENT HASH: This algorithm takes the user input location within the current request to generate a user-defined custom unique hash key. This key is used to assign the client to a specific server. In the case of a broken session, the key can be regenerated, and the client can be directed to the same server. NOTE: In hashing-based load balancing, if a specified value does not exist then the request is served on the basis of client's IP address.

  7. Least Requests: This algorithm is a dynamic load balancing algorithm. It forwards client requests to the server, which have served the minimum amount of requests.

  8. SNMP Metrics: This algorithm is a dynamic load balancing algorithm. It forwards client requests to the server, which have the least CPU / RAM usage. NOTE: For this algorithm to work, the server group should have SNMP monitor attached.

  9. SIP session ID: SIP Session ID–based load balancing enables sticky session persistence for SIP traffic, ensuring uninterrupted traffic and maintaining signaling consistency across all transactions.

  10. Proximity: This algorithm is a dynamic load balancing algorithm that forwards client requests to the server located closest to the client’s geographical or network location. It determines proximity based on factors such as network latency, round-trip time (RTT), or geo-location mapping to minimize response time and optimize user experience.

How to Use:​

  1. Go to Stack > SLB > Listeners >** Server Groups** > Select Server Name > Load Balancing
  2. Configure your settings.
  3. Click Save Changes.

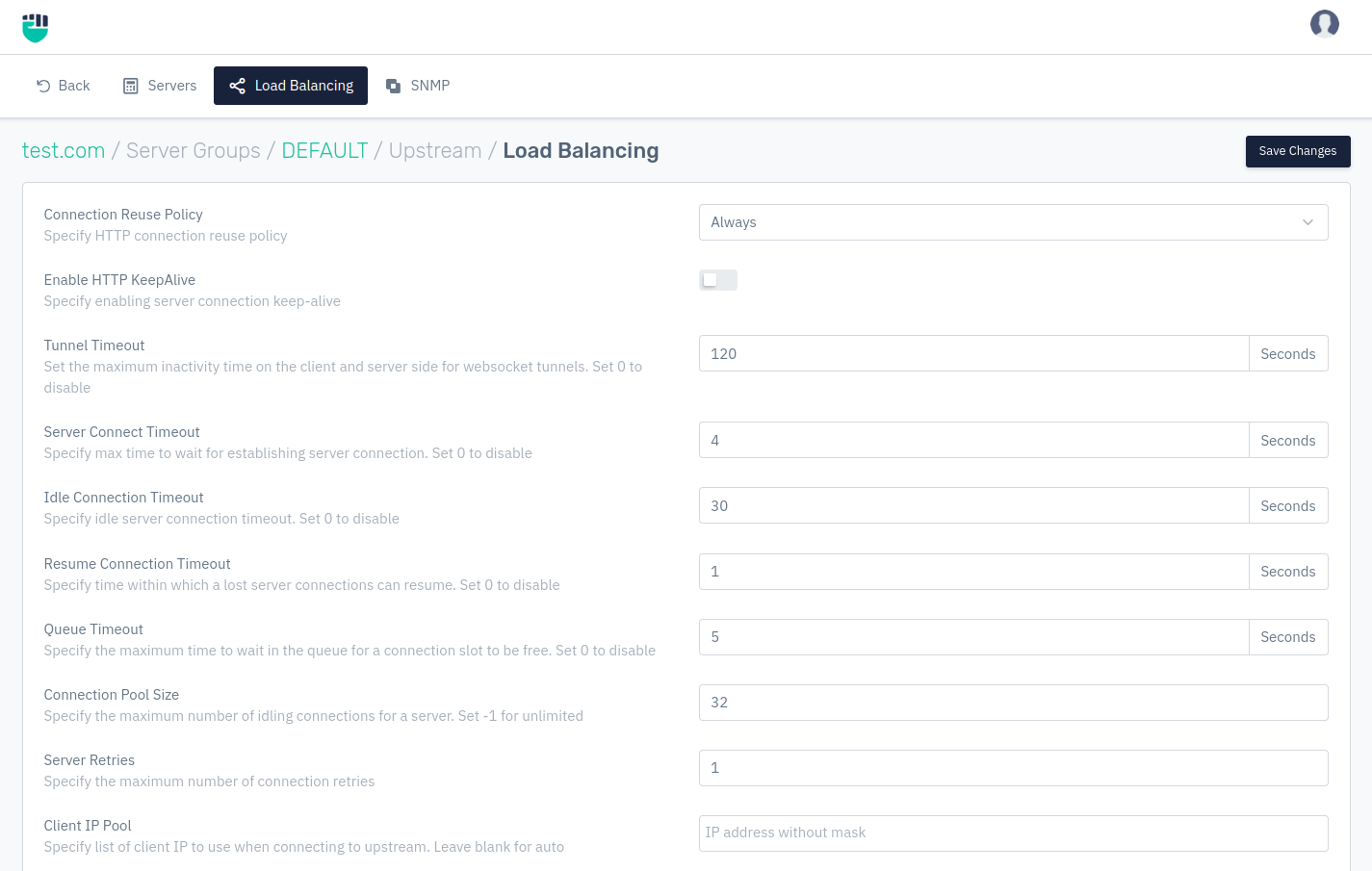

Load balancing

Load balancing

Description:​

Connection Reuse Policy​

This option allows users to specify an HTTP connection reuse policy.

    Accepted values: Always / Never / Safe / Aggressive

    Default: Always
Enable HTTP KeepAlive​

This option allows users to specify enabling server connection keep-alive.

    Accepted values: Enable / Disable

    Default: Enable
HTTP KeepAlive Timeout​

This option allows users to specify a keep-alive server connection timeout.

    Accepted values: Integer

    Default: 2
Tunnel Timeout​

This option allows users to set the maximum inactivity time on the client and server-side for Websocket tunnels

    Accepted values: Integer

    Default: 120
Request Timeout​

This option allows users to set the maximum inactivity time on the client and server-side for web-socket tunnels.

    Accepted values: Integer

    Default: 10
Server Connect Timeout​

This option allows users to specify a max time to wait for establishing server connection.

    Accepted values: Integer

    Default: 4
Idle Connection Timeout​

This option allows users to specify idle server connection timeout.

    Accepted values: Integer

    Default: 30
Resume Connection Timeout​

This option allows users to specify the time within which a lost server connection can resume.

    Accepted values: Integer

    Default: 1
Queue Timeout​

This option allows users to specify the maximum time to wait in the queue for a connection slot to be free.

    Accepted values: Integer

    Default: 5
Connection Pool Size​

This option allows users to specify the maximum number of idling connections for a server. Set -1 for unlimited.

    Accepted values: Integer

    Default: 32
Server Retries​

This option allows users to specify the max number of connection retries.

    Accepted values: Integer

    Default: 1
Client IP Pool​

This option allows users to specify list of client IP to use when connecting to upstream. Leave blank for auto.

    Accepted values: IP

    Default: Blank

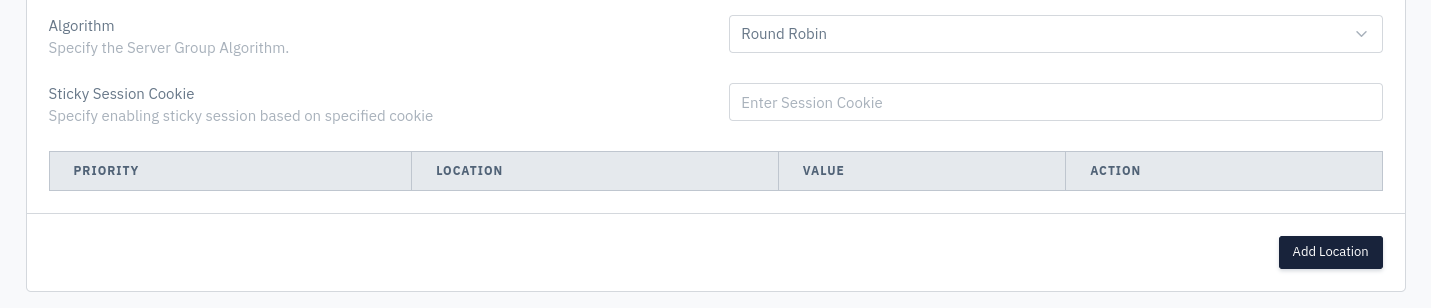

Algorithm​

This option allows users to specify the Server Group Algorithm.

    Accepted values: Round Robin / Least Connection / Least Listener Connection / Least Response Time / Minium Jitter / IP Hash / Persistent Hash / Least Requests / SNMP Metrics

    Default: Round Robin

Users are allowed to specify enabling sticky session based on specified cookie.

    Accepted values: String

    Default: 5

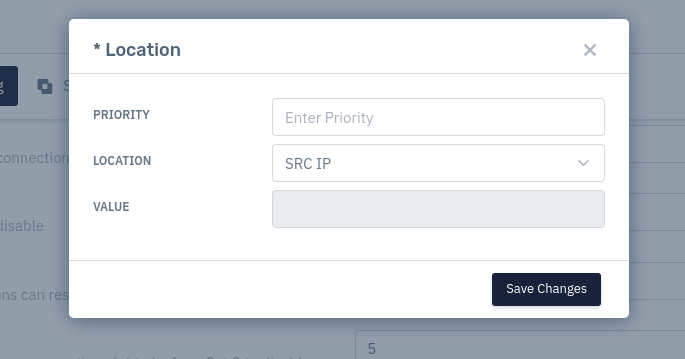

Adding Location​

Load balancing2

  • Priority The user can set the priority.
    Accepted values: Integer

    Default: Blank
  • Location
    The user can set the location for which load balancing is done.
    Accepted values: SRC_IP / DST_IP / SRC_PORT / DST_PORT / URL / ARG_VAL / HEADER_VAL / COOKIE_VAL

    Default: SRC_IP
  • Value
    The users are allowed to specify the location value. This option will only visible when location is selected to value fields.
    Accepted values: String

    Default: 5
