KB: 1036

---

How to configure Blacklist and Whitelist IP addresses?

Problem Statement

The user wants to blacklist/whitelist the IP address or sub-network.

Solution

1. First log into the haltdos management portal.

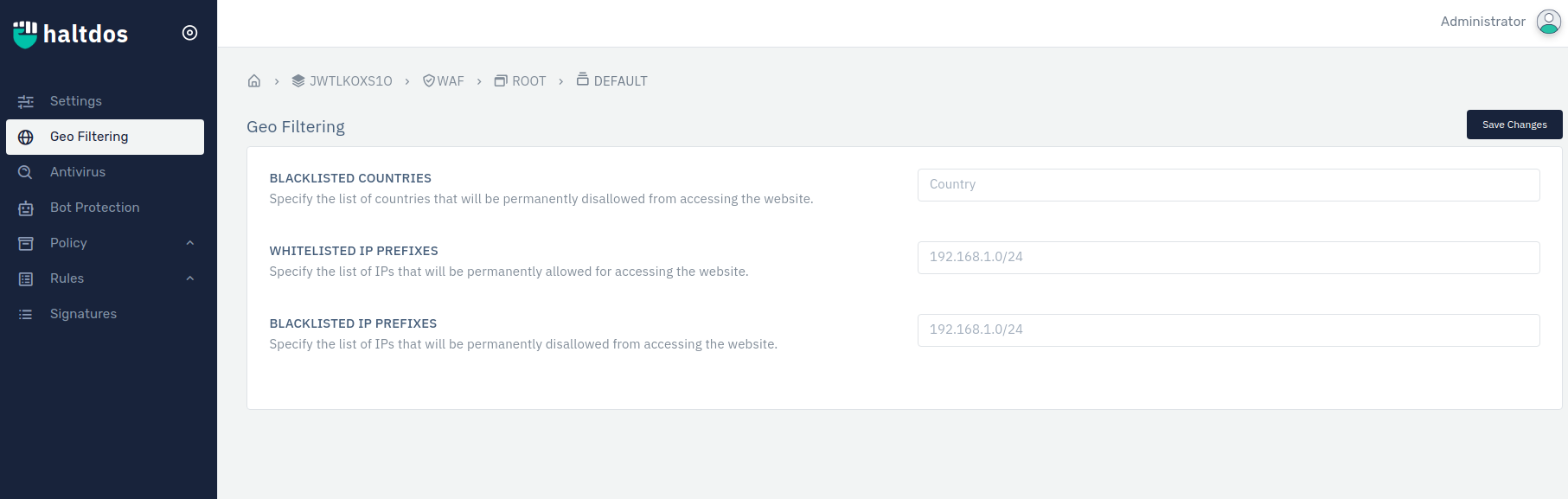

2. Go to stack > WAF > listener > profile > profile settings > Geo filtering.

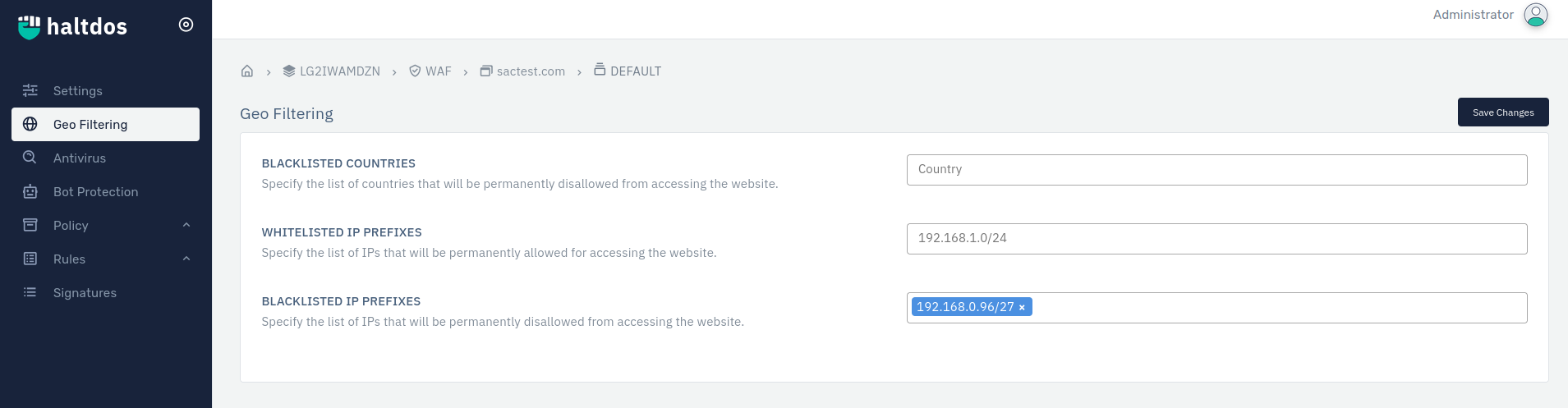

3.Configure the sub net or IP address with their CIDR value for blacklisting/ whitelisting. as given in mentioned example we have blocked the sub network 192.168.0.96/27 which will block the IP address 192.168.0.123.
