Rate Limit Rules

Overview

Rate Limiting is a feature of Haltdos WAF that allows application owners to enforce rate limiting on some of the pages which affect their website performance.

Warning Manual configuration of rate limit rules is risky for administrators without the relevant training and experience. Badly conceived or misconfigured rate limit rules can result in loss of performance, incorrect behavior.

How to Use:

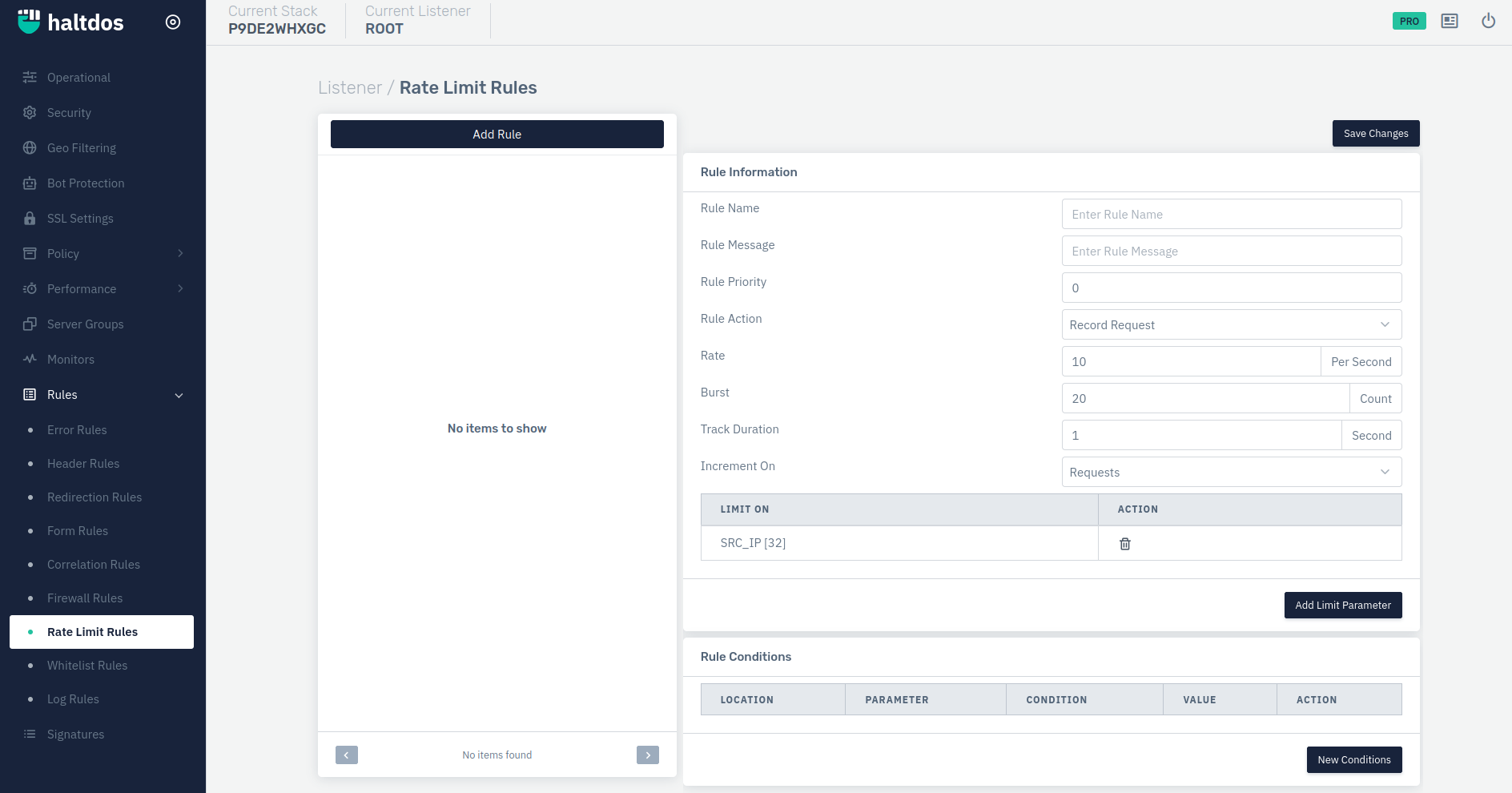

1. Log into the Haltdos WAF Professional edition web UI console.
2. Then to Listeners > Rules > Rate Limit Rules
3. Click on Add Rule.
4. Configure the rule and click on save changes.

Parameters	Accepted value	Default
Rule Name	String	None
Rule Message	String	None
Rule Priority	Integer	0
Rule Action	Drop-down	Record request
Rate	Integer	10
Burst	Integer	20
Track Duration	Integer	1
Increment on	Drop-down	Requests
Condition Phase	Drop-down	Request
Find Location	Drop-Down	Variable
Find Parameter	String	Blank
Match Condition	Drop-Down	Pattern Exists
Match Value	String	Blank

Description

Rule Name

Users are allowed to specify a rule name to identify the rule which is to be created. The rule name takes alpha-numeric input.

Rule Message

Users are allowed to specify a rule message to understand the purpose of the rule. It can contain a detailed description to identify the rule.

Rule Priority

Users are allowed to specify the priority for the rule for execution when matched with the request.

Rule Action

Users are allowed to specify the action to be taken for the request matched i.e. record request,Drop & record request, Bypass request, Temp Blacklist src IP, Tarpit Src IP etc.

Limit Rate

Users are allowed to specify the request rate for the page. The limit rate specified will validate the number of requests coming per second which is not exceeding the limit rate.

Limit Burst

Specify the request burst rate for the page. The burst rate specified will validate the total number of requests received.

Limit Duration

Users are allowed to specify the time duration for which the rule will limit the request.

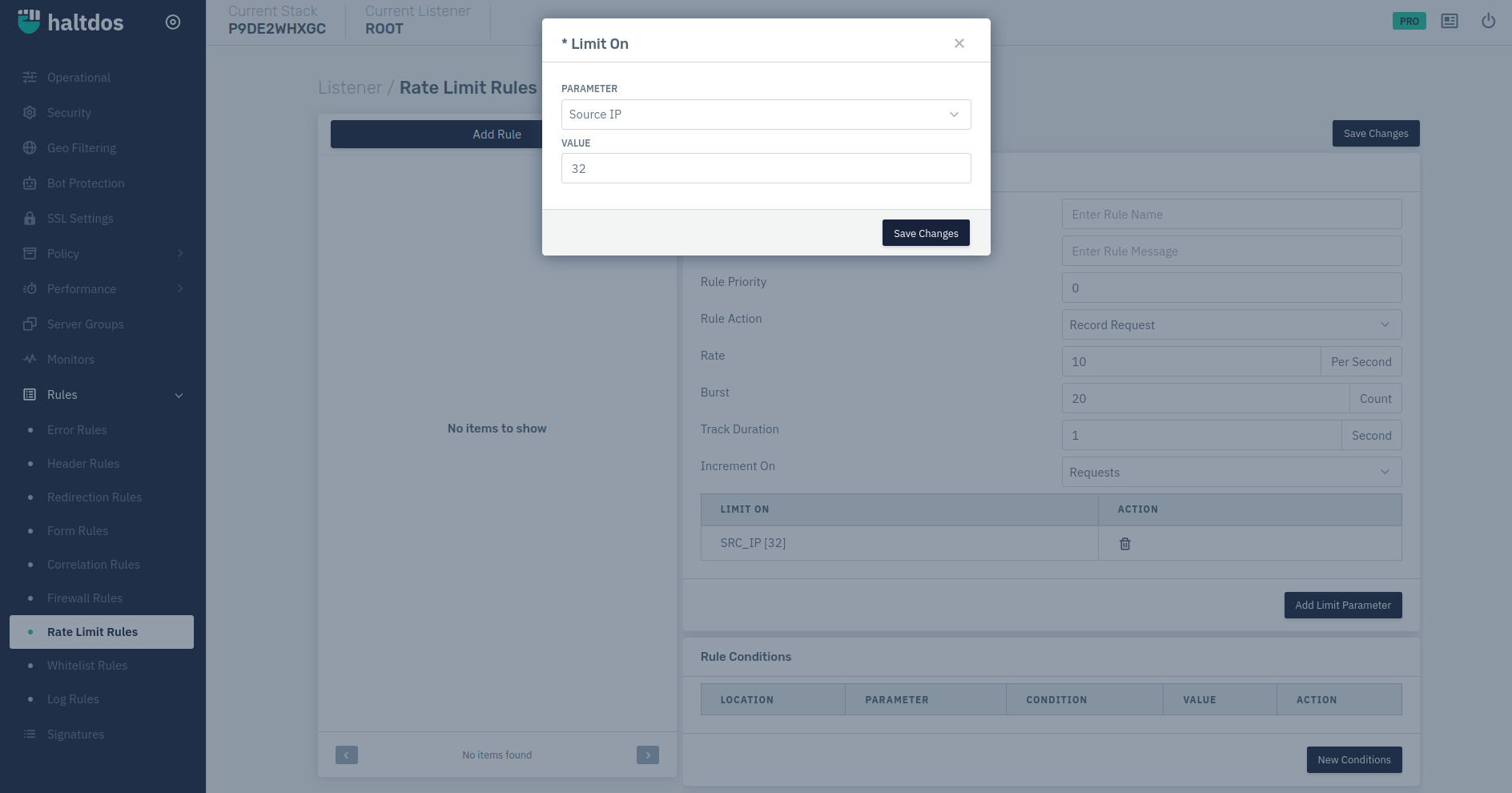

Limit On

Users are allowed to specify the object on which we apply the limit such as Client IP, User-Agent, URI, Source Port, HTTP Method, HTTP Referrer.

Note

Always limit burst must be greater than or equal to limit rate.

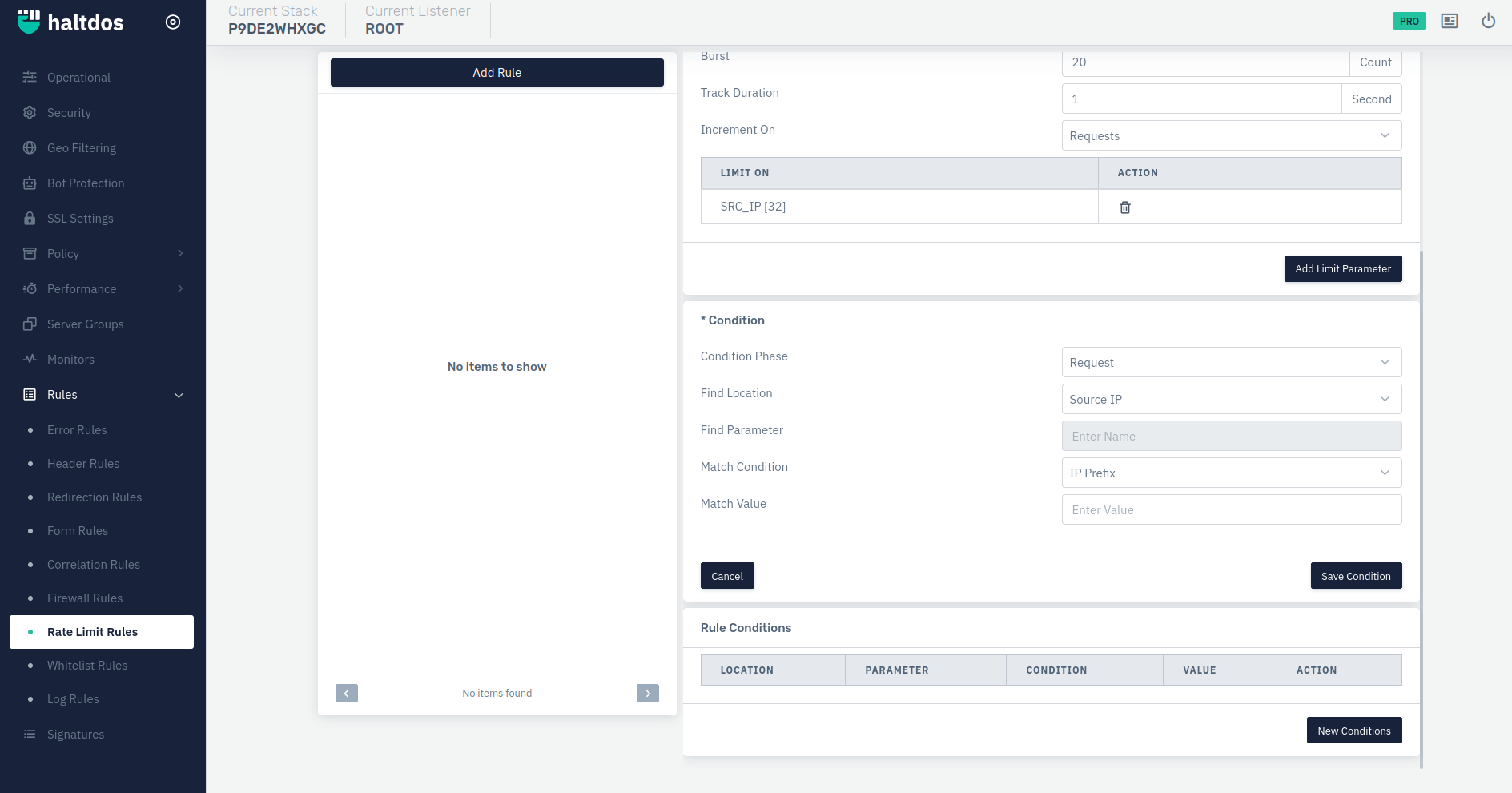

Condition Phase

This drop-down allows to set the match condition i.e. request or response for the request.

Find Location

Users can define the source location where this condition needs to be applied.

Find Parameter

The user can define the parameter based on the location of the condition.

Match Condition

The user can define the match condition for the parameter and match value.

Match Value

The user can define what value needs to be matched with the match condition.
