Header Rules

Helps to modify headers, cookies, and arguments in the request sent to the back-end server as well as modifying response sent to the client.

Overview​

We have introduced Header rules by which application owners can manipulate request headers, cookies, and arguments in request as well as response headers. Users can create/update header rules at run time with on-the-fly updates. It has the functionality to add/remove/update any cookie/header/arguments in the request to the web-server(back-end) as well as respond to the client.

header_rules header_rules

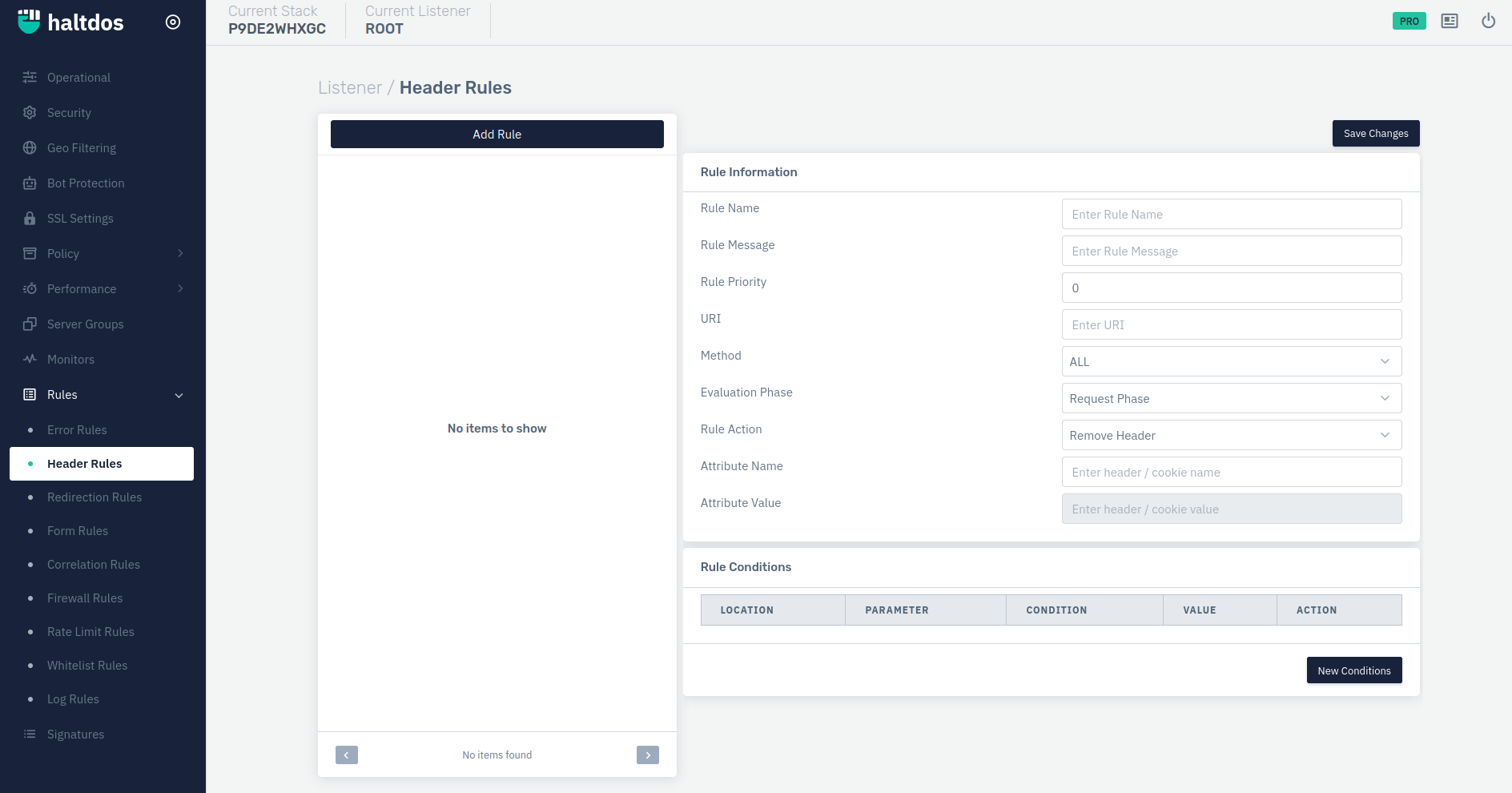

How to Use:​

  1. Log into the Haltdos WAF Professional edition web UI console.
  2. Then go to Listeners > Rules > Header Rules.
  3. Click on Add Rule and set relevant parameters described below.
  4. Click on Save Changes

Description​

Rule Name​

Specify a rule name to identify the rule which is to be created. The rule name takes alphanumeric input.

Message​

Specify a rule message containing a detailed description to identify the rule which is to be created.

Rule Priority​

User can define the rule's priority among various other custom error rules.

URI​

Specify the URI or regex for which rule will be applied.

Method​

Select the HTTP method for the rule to validate when matched with the request.

Rule Action​

The rule action determines what action (add/remove/overwrite) the rule will perform. The accepted values are:

  1. ADD: This condition will allow adding a value at the specified location.

  2. REMOVE: This condition will allow removing a value at the specified location.

  3. OVERWRITE: This condition will allow overwriting a value at the specified location.

If the action is ADD then another field is required I.e., Value that will be added for the specified Parameter.

If the action is REMOVE, then the specified parameter is removed.

If the action is OVERWRITE, then two other fields are required first is Search Pattern (string/regex that should match the existing value) and Replace (the string that should be overwritten). We can capture string from the PCRE capturing group using position with a prefix of '$'.

Note

In order to escape the dollar($) character in the replace, add the dollar symbol twice.

Evaluation Phase​

Select the evaluation phase for the rule i.e. Request or Response.

Attribute Name​

Specify the attribute name which need to add/delete/overwrite with rule.

Attribute Value​

Specify the attribute value which will be mentioned in the attribute.

Parameter​

This field specifies the name of the header/cookie/ arguments on which action will be performed.

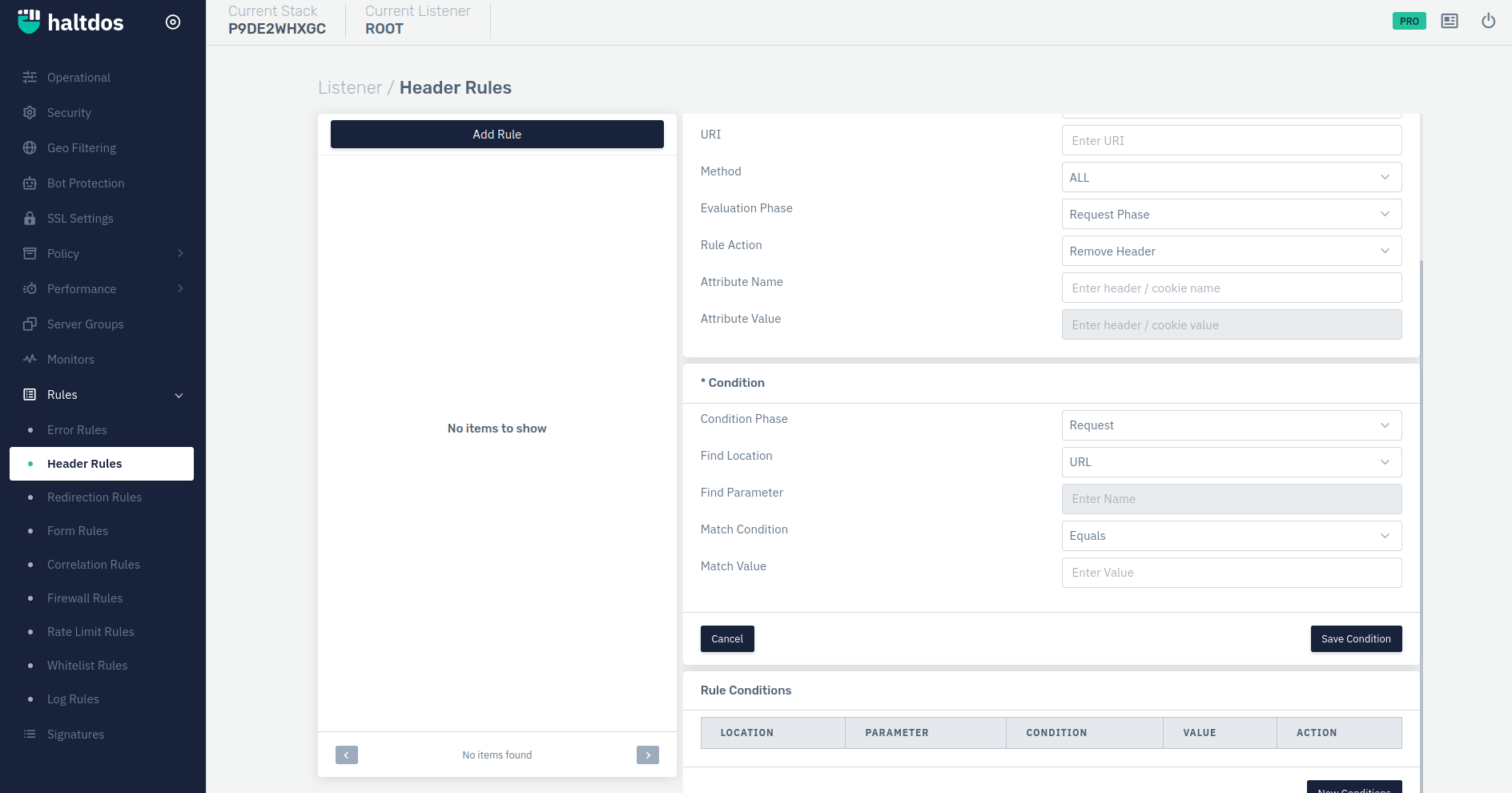

Add Condition​

The user can specify some request/response-based conditions which can be used as mandatory conditions to be fulfilled to apply the rule.

For adding a condition, the required fields are:

Check Response​

This field determines that the condition will be checked on request/response parameters.

Find Location​

This field determines whether the condition should be checked on headers/cookies/arguments. The accepted values are:

HEADER_VAL : Rule will be applicable on the header value in the request or response.

COOKIE_VAL : Rule will be applicable to the cookie value in the request or response.

AGRS_VAL : Rule will be applicable to the argument value in the request or response.

Parameter​

This field specifies the name of the header/cookie/ arguments on which condition will be validated. Search Pattern: This field specifies the pattern that will be matched against the header/cookie/ argument value to satisfy the condition.

Match Condition​

The user can define the match condition for the parameter and match value.

Match Value​

The user can define what value needs to be matched with the match condition.
