Server Groups
User can select the Load Balancing mechanism and specify Origin Server IPs on this screen
Overview
To load balance HTTP traffic to a group of servers, first, you need to define the group. Servers in the group are configured using the servers page. To pass requests to a server group, use Upstream Rules.
This is useful for:
-
Auto-scaling, when you need to add more servers.
-
Backup Server, When all active servers breach the failure threshold then the backup server will be up and inline to handle the traffic.
-
Quick Setup, when you need to change upstream server settings such as server weight, active connections, slow start, failure timeouts.
Monitoring, when you get the state of the server or server group with one command.
How to Use:

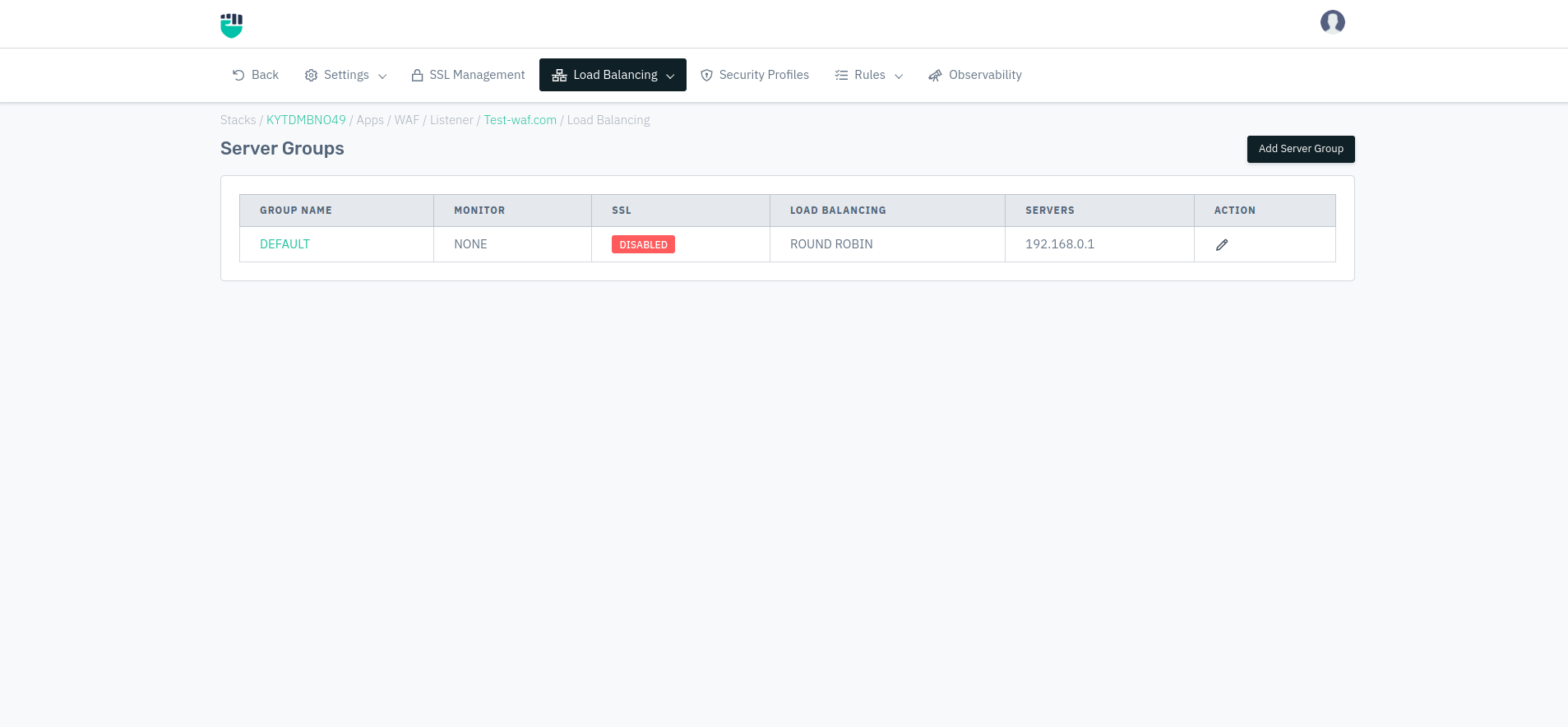

- Go to WAF > Listeners > Server Groups

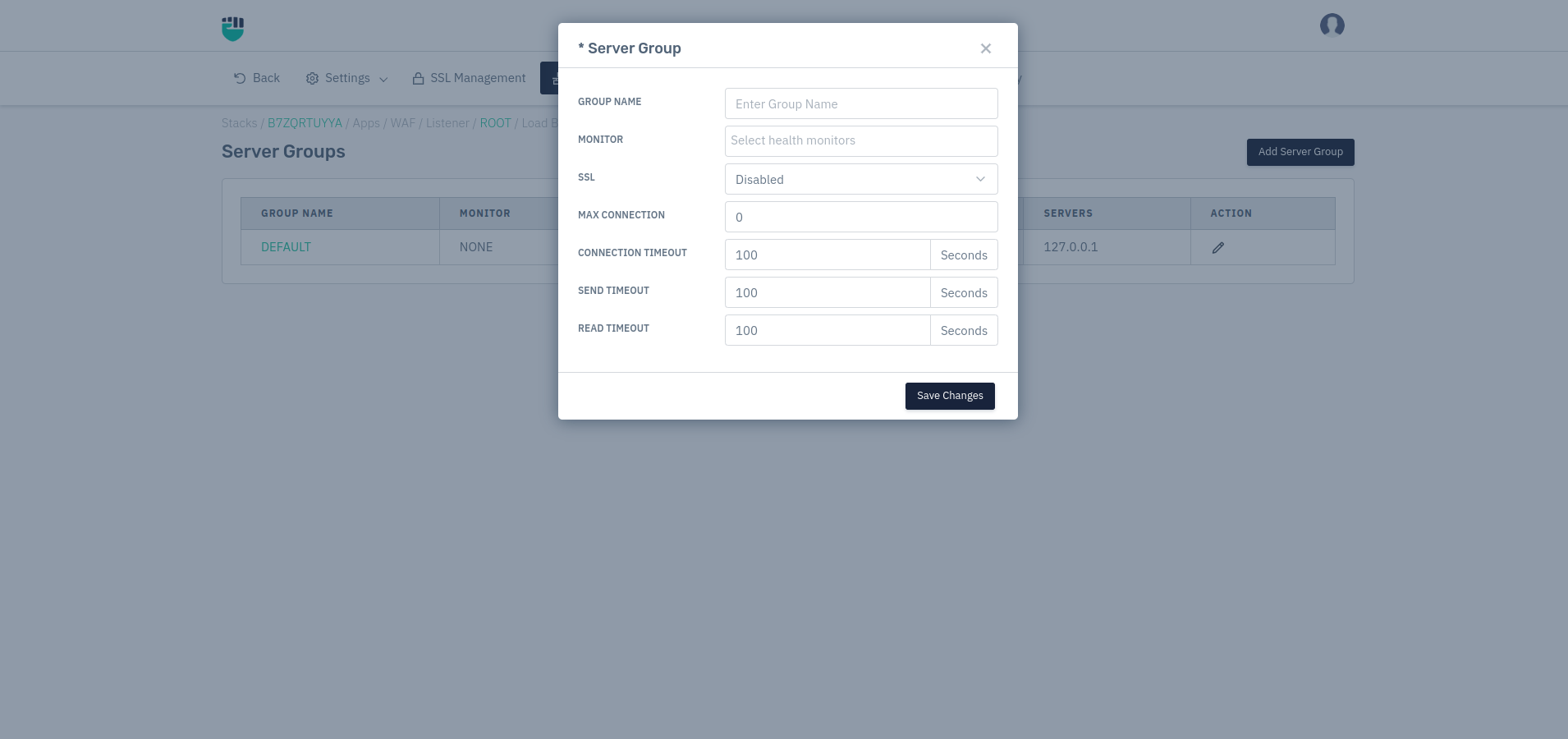

- Click Add Server Group and Configure details.
- Click Save Changes
Description
Group Name
Specify a user-friendly name to identify the server group. The group name takes alphanumeric input.
Accepted values: String
Default: Blank
Monitor
This option allows user to attach any existing monitor to the server group.
Accepted values: Select Existing Health Monitor
Default: Blank
SSL
This option allows user to enable or disable SSL for the server group.
Accepted values: Enabled / Disabled
Default: Disabled
Max Connection
This option allows user to specify the number of maximum connections allowed to the specific server.
Accepted values: Integer
Default: 0
Connection Timeout
This option allows user to specify the connection timeout for the server.
Accepted values: Integer
Default: 100
Metrics: Seconds
Send Timeout
This option allows user to specify to send timeout for the server.
Accepted values: Integer
Default: 100
Metrics: Seconds
Read Timeout
This option allows user to specify the read timeout for the server.
Accepted values: Integer
Default: 100
Metrics: Seconds
