Version: v8

General Settings

Overview​

General settings are used to set configure settings like authentications, TCP and UDP IP address as well as port etc.

settings

How to Use:​

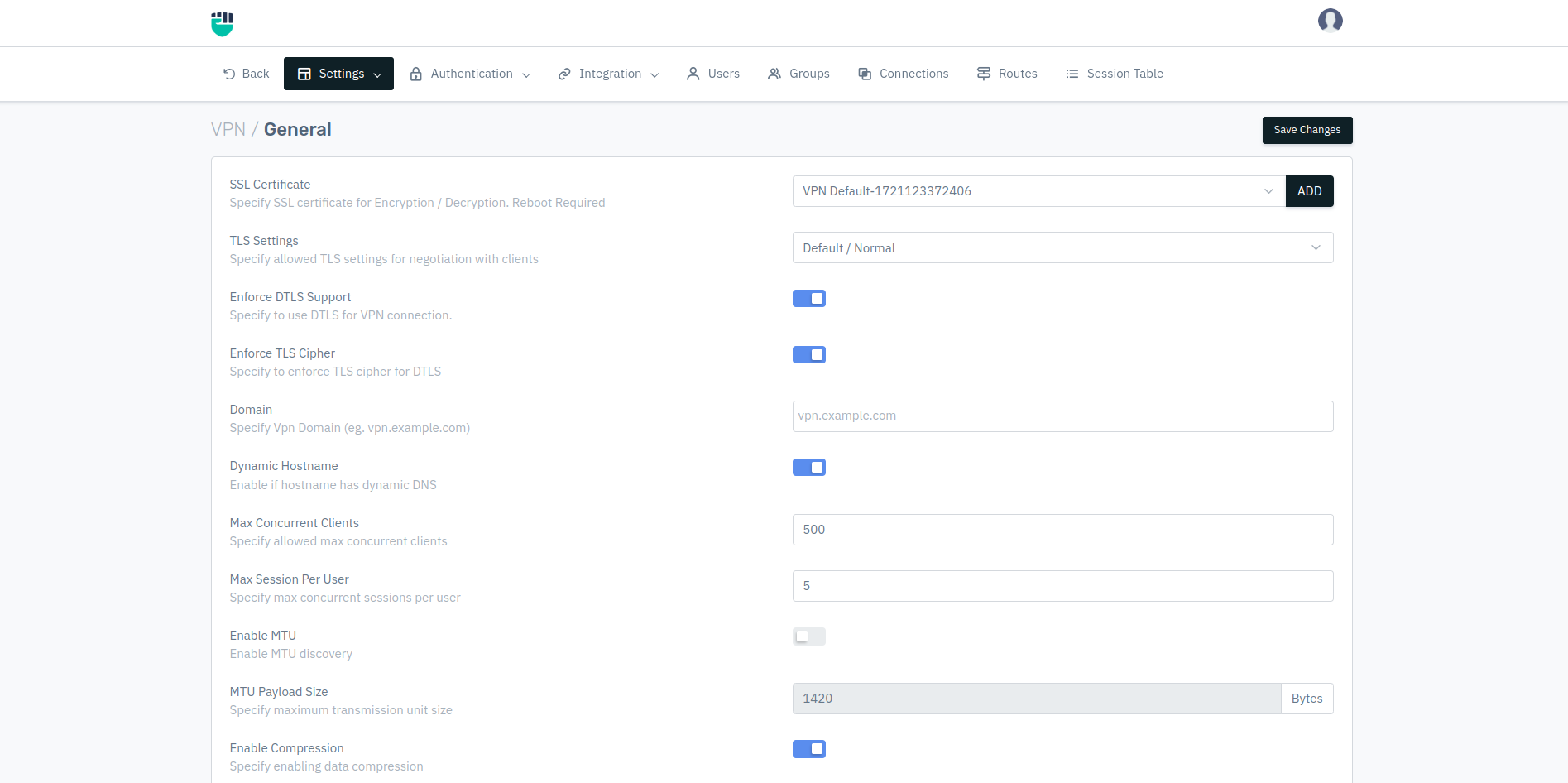

  1. First go to Stack > VPN > Settings > General.
  2. Configure the settings as per your requirements.
  3. Click on Save Changes.

Description:​

Supported Authentication
Users can specify the supported authentication scheme. Users can select any one from the list mentioned below:

  • Username with Password
  • Client Certificate - Haltdos allows users to set the client certificate to customize connectivity. Users can add certificates as per need. User can add certificate by clicking on add button, it will redirect user to client certificate page where they can add certificate.
  • Active Directory/LDAP - The Lightweight Directory Access Protocol is an open, vendor-neutral, industry standard application protocol for accessing and maintaining distributed directory information services over an Internet Protocol network.
  • PAM - If your system supports Pluggable Authentication Modules (PAM), then Haltdos VPN will take advantage of it to password authenticate its users.

SSL Certificate
Specify SSL certificate for Encryption / Decryption. Reboot Required

Accepted Value: Add SSL Certificate

Default: Blank



**TLS Settings**
Specify allowed TLS settings for negotiation with clients

    Accepted Value: Default/Normal / Support Legacy Client / High Performance /  Secure 256 bit key ciphers / Custom

    Default: Default/Normal

Enforce DTLS Support

Specify to use DTLS for VPN connection.

Accepted Value: Enable / Disable

Default: Enable



**Enforce TLS Cipher**

Specify to enforce TLS cipher for DTLS

    Accepted Value: Enable / Disable

    Default: Enable

Domain
Specify Vpn Domain (eg. vpn.example.com)

Accepted Value: Enter Domain (string)

Default: Blank



**Dynamic Hostname**

Enable if hostname has dynamic DNS

    Accepted Value: Enable / Disable

    Default: Enable

Max Concurrent Clients

Specify allowed max concurrent clients

Accepted Value: Integer

Default: 500



**Max Session Per User**

Specify max concurrent sessions per user

    Accepted Value: Integer

    Default: 5

Enable MTU

Enable MTU discovery

Accepted Value: Enable / Disable

Default: Enable



**MTU Payload Size**

Specify maximum transmission unit size

    Accepted Value: Integer

    Default: 1420

Enable Compression

Specify enabling data compression

Accepted Value: Enable / Disable

Default: Enable



**Minimum Compression Length**

Specify minimum size of packet for compression

    Accepted Value: Integer

    Default: 256
