Log Rules
log rule to capture packet information
This rule helps users to capture packet. Once we configure the log rule, all those packets which satisfy the condition of the log rule, will be captured and information will be shown in the Session Table.
How to Use :
-

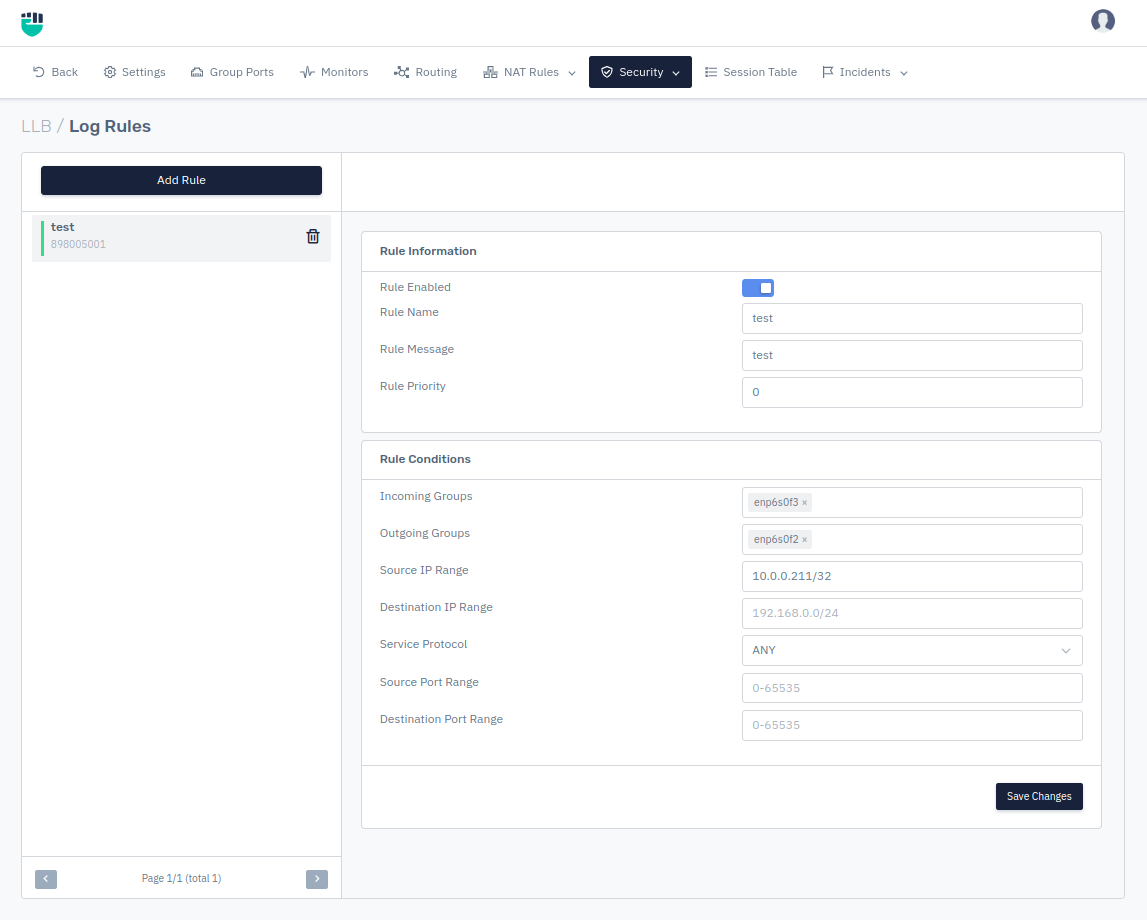

Go to Apps > LLB > Security > Log Rules.
-
Click on add new rule.
-
Configure the rule conditions and click on save changes.
Description:
Rule Enabled
It specifies rule is enabled or disabled. By default, this option is enabled.
Accepted values: Enabled / Disabled
Default: Enabled
Rule Name
This option allows users to select desired rule name.
Accepted values: String
Default: Blank
Rule Message
This option allows users to use specifies the custom message for the rule.
Accepted values: String
Default: Blank
Rule Priority
This option allows the user to set rule priority. The rule with lower Priority Value will be prioritized.
Accepted values:
Default: Blank
Incoming Group
It specifies the incoming group for the log rule. All the traffic that is coming in from the Incoming group will be captured if no other conditions are configured.
Accepted values: Interface
Default: Blank
Outgoing Group
It specifies the outgoing group for the log rule. All the traffic that is going out from the outgoing group will be captured if no other conditions are configured.
Accepted values: Interface
Default: Blank
Source IP Range
It specifies the source IP range for the log rules. All the traffic that has configured source IP will be captured and shown in session table.
Accepted values: IP
Default: Blank
Destination IP Range
It specifies the destination IP range for the log rules. All the traffic that has configured destination IP will be captured and shown in session table.
Accepted values: IP
Default: Blank
Service Protocol
It specifies the service protocol that need to be logged.
Accepted values: String
Default: Blank
Source Port Range
It specifies source port range for the logs capture.
Accepted values: Port
Default: Blank
** Destination Port Range**
It specifies destination port range for the logs capture.
Accepted values: Port
Default: Blank
