Geo Ip Fencing

Geo Ip Fencing is an ability to filter out request coming from different geographical locations and taking actions to block the Country & IP address if required.

geo_ip_fencing

How to Use :​

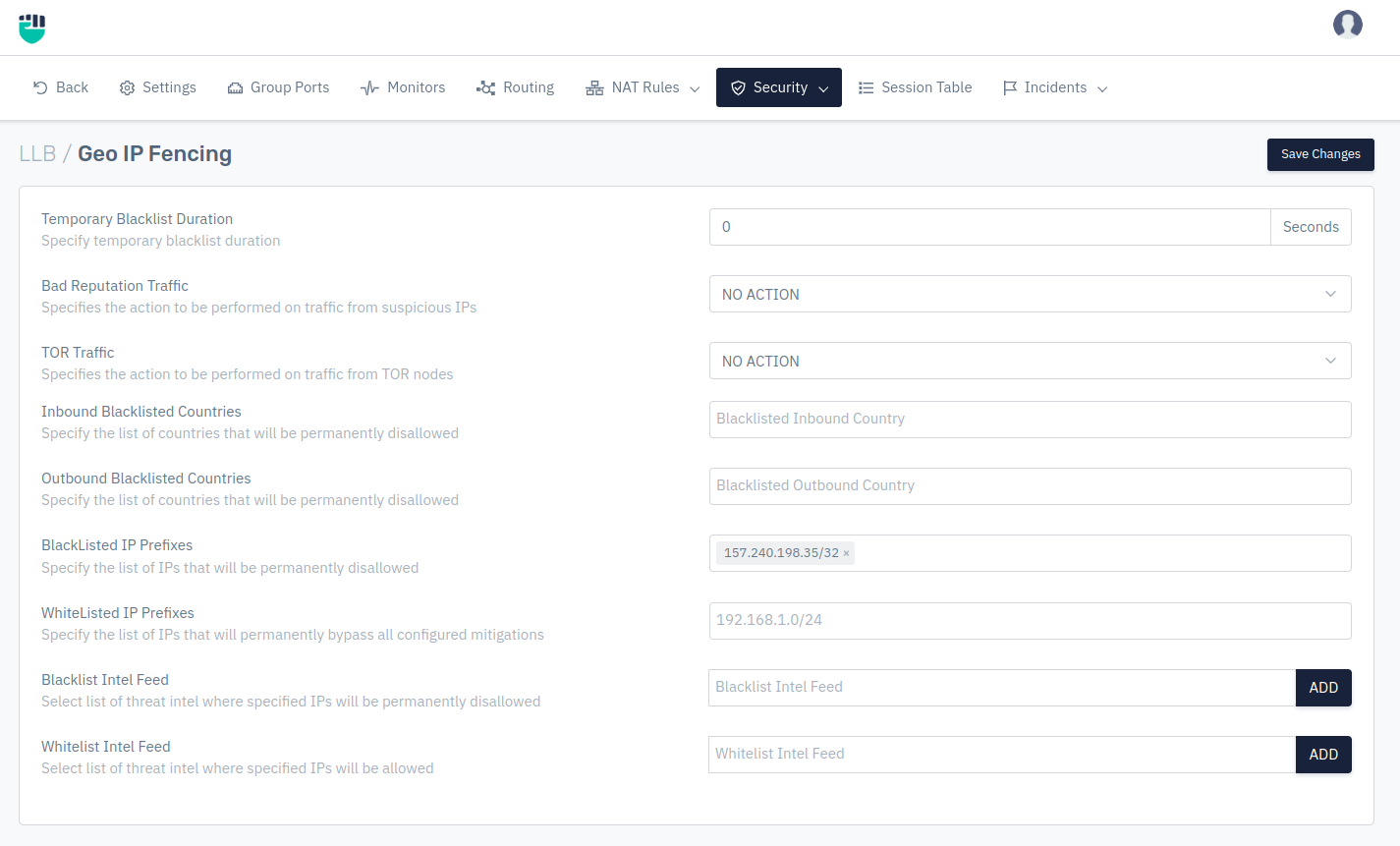

  1. Go to Apps > LLB > Security > Geo Ip Fencing.

  2. Configure your settings.

  3. Configure the rule conditions and click on save changes.

Description:​

Temporary Blacklist Duration​

This option allows users to configure the time period for which misbehaving IP addresses will be suspended.

    Accepted values: Integer

    Default: 0

Bad Reputation Traffic​

This option allows users to specify the action from the drop-down menu on incoming traffic coming from suspicious IPs. There are 4 actions that can be performed for the traffic generated from bad reputation sources;

    Accepted values: No Action / Record / Add Suspicion /  Drop

    Default: Blank
  1. No Action: This option will be performed for the TOR traffic.
  2. Record: This option will record all request coming from TOR IPs
  3. Add Suspicion: This option will add suspicion for the packet, which will increase the packet scoring. The higher the packet score will tends to high chance of blocking that traffic.
  4. Drop: This option will drop all the TOR traffic.

Tor Traffic​

This option allows users to specify the action from the drop-down menu to be performed on incoming TOR Network traffic. There are 4 actions that can be performed for the traffic generated from the Tor gateways;

    Accepted values: No Action / Record / Add Suspicion /  Drop

    Default: Blank
Inbound Blacklisted Countries​

This option allows users to select the list of Inbound countries from the drop-down list that will be permanently disallowed.

    Accepted values: Select Countries

    Default: Blank
Outbound Blacklisted Countries​

This option allows users to select the list of Outbound countries from the drop-down list that will be permanently disallowed.

    Accepted values: Select Countries

    Default: Blank
Blacklisted IP Prefixes​

This option allows users to specify multiple IP prefixes or IP address (With CIDR /32) that will be permanently disallowed.

    Accepted values: IP Prefixes

    Default: Blank
Whitelisted IP Prefixes​

This option allows users to specify multiple IP prefixes or IP address (With CIDR /32). Traffic to / from these IPs will permanently bypass all configured mitigation.

    Accepted values: IP Prefixes

    Default: Blank
Blacklist Intel Feed​

This option allows users to configure and add custom threat intel to blacklist traffic generated from the IP addresses or prefixed.

    Accepted values: Select Intel feed

    Default: Blank
Whitelist Intel Feed​

This option allows users to configure and add custom threat intel to whitelist traffic coming from those IP addresses or IP prefixes.

    Accepted values: Select Intel feed

    Default: Blank
