Operational

Configure Operational settings of Listeners.


Overview

Users are allowed to configure many operational settings for the Listeners. Users can configure most common settings like timeout settings, operation modes, header/body timeouts, error handling, and request logging. Users can also add server aliases and VIPs to the configured listener with the help of operational settings

Listener Operational Settings

How to Use:

  1. Go to WAF > Listener > Settings.
  2. Configure the settings.
  3. Click on Save changes.

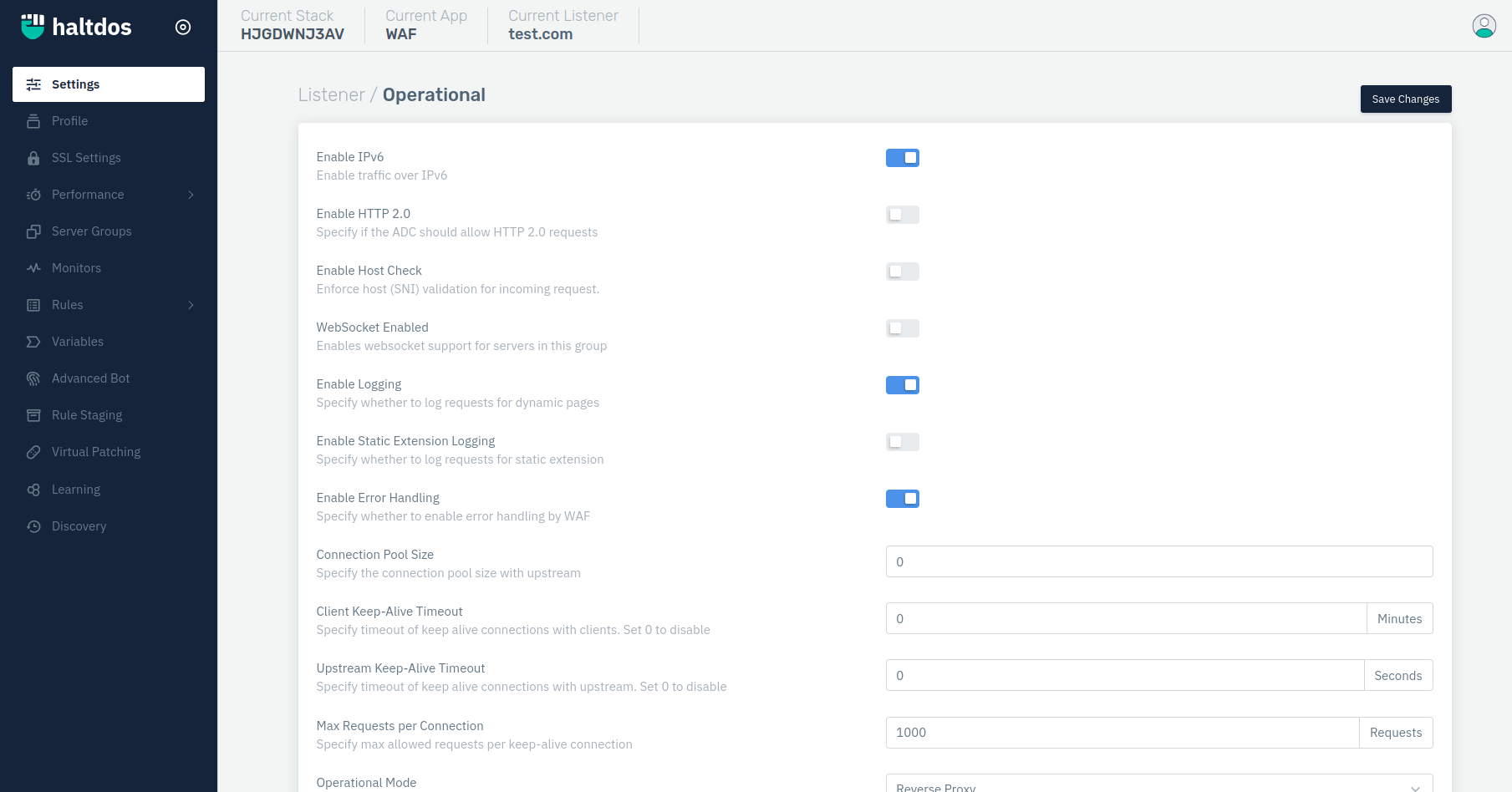

Listener Operational Settings

Listener Operational Settings

Description

Enable IPv6

This option allows user to enable traffic over IPv6 and applicable in the case of all service types. Internet Protocol version 6 is the most recent version of the Internet Protocol that allows communication to take place over the network.

    Accepted values: Enable / Disable

Default: Enable
Enable HTTP 2.0

Specify if the WAF should allow HTTP 2.0 requests. By default, it supports other versions like HTTP 1.1 This option allows user to specify whether the solution supports HTTP 2.0 request. HTTP/2 aims to be a faster, more efficient protocol than HTTP. By default, it supports other versions like HTTP 1.1

    Accepted values: Enable / Disable

Default: Disable

For more information about HTTP/2 , please refer this site : HTTP 2.0

Enable Host Check

Enable Host Check to enforce validation of the host (SNI) for incoming requests, ensuring that the server name in the request matches the expected host. This helps improve security by verifying that requests are directed to the correct server.

    Accepted values: Enable / Disable

Default: Enable
Web-socket Enabled

This option allows user to enable web-socket support for servers or server group. It is a communication, an upgraded, quick, and seamless protocol to use when one needs to establish constant client-server communication over a single TCP connection.

    Accepted values: Enable / Disable

Default: Disable

For more information about Web-socket , please refer this site : Web-Socket

Enable Logging

This option allows user to enable access logs in the case of service type HTTP & TCP.

    Accepted values: Enable / Disable

Default: Enable
Enable Static Extension Logging

This option allows user to specify whether to do log requests for static extension. (logging of file extensions associated with static files served by a web server. In the context of web servers, static files are files that are served directly to the client without any server-side processing, such as HTML, CSS, JavaScript, images, and downloadable files like PDFs.)

    Accepted values: Enable / Disable

Default: Disable
Enable Error Handling

This option allows user to specify whether to enable error handling by firewall.

    Accepted values: Enable / Disable

Default: Enable
Connection Pool Size

This option allows user to specify the connection pool size with upstream.

    Accepted values: Integer

Max: 20000

Min: 0

Default: 0
  • Connection Pool A connection pool is a cache of database or network connections maintained so that the connections can be reused when future requests to the database or network are required.
  • Upstream server refers to a backend server to which the web server forwards requests for processing.
Client Keep-Alive Timeout

This option sets the duration (in seconds) for which the server keeps an idle connection open with a client. If set to 0, keep-alive connections are disabled, meaning the server will close the connection immediately after responding to a client's request.

    Accepted values: Integer

Max: 1000000

Min: 0

Default: 0

Metric: Minutes

  • Keep-alive timeout determines how long the server should wait for the next request from the client before closing the connection. If the server does not receive a new request within this period, it closes the connection to free up resources.
Upstream Keep-Alive Timeout

This option sets the duration (in seconds) for which the server keeps an idle connection open with an upstream server. If set to 0, keep-alive connections are disabled, causing the server to close the connection immediately after receiving a response from the upstream server.

    Accepted values: Integer

Max: 3600

Min: 0

Default: 0

Metric: Seconds

Max Requests per Connection

This option specify maximum allowed requests per keep-alive connection.

    Accepted values: Integer

Max: 90000000

Min: 0

Default: 1000

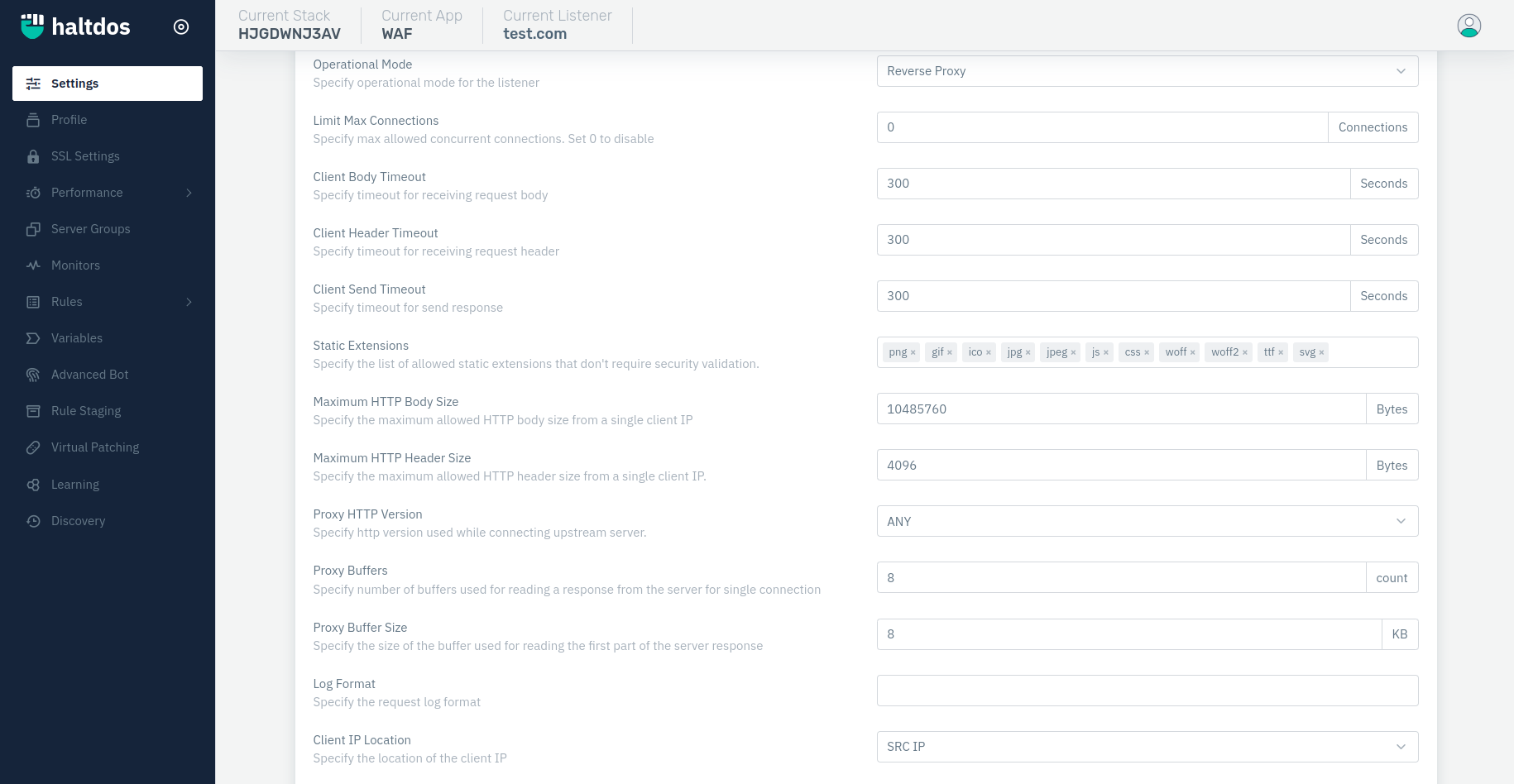

Operational Mode

Specify operational mode for the listener

    Accepted values: Reverse Proxy / IP Transparency

Default: Reverse Proxy
  • Reverse proxy is a server that sits between clients and one or more backend servers. It receives requests from clients on behalf of the backend servers and forwards those requests to the appropriate server.
  • IP Transparency refers to a networking configuration where the original client IP address (source IP) is preserved and visible to the backend servers, even when traffic passes through a reverse proxy or load balancer.
Limit MAX Collection

This option sets the maximum number of concurrent connections allowed. If set to 0, no limit is enforced on the number of concurrent connections.

    Accepted values: Integer

Max: 90000000

Min: 0

Default: 0

Metric: Connections

Client Body Timeout

This option sets the maximum time allowed for receiving the request body from the client. If the request body is not fully received within this timeframe, the connection will be closed.

    Accepted values: Integer

Max: 1000000

Min: 10

Default: 300

Metric: Seconds

Client Header Timeout

This option sets the maximum time allowed to receive the request header from the client. If the header is not completely received within this period, the connection will be terminated.

    Accepted values: Integer

Max: 1000000

Min: 10

Default: 300

Metric: Seconds

Client Send Timeout

This option sets the maximum time allowed to send the response to the client. If the response cannot be fully sent within this period, the connection will be terminated.

    Accepted values: Integer

Max: 1000000

Min: 10

Default: 300

Metric: Seconds

Static Extensions

This setting allows specifying a list of file extensions that are permitted to be served statically without undergoing security validation. Files with these extensions can be served directly without additional security checks.

    Accepted values: Specify the list of allowed static extensions that don't require security validation.

Default: png, gif, ico, jpg, jpeg, js, css, wpff, woff2, ttf, svg.
Maximum HTTP Body Size

This field specifies the maximum allowed HTTP body size (in bytes) from a single client IP. If the size exceeds, then the request gets dropped. By default, it is 10485760 bytes.

    Accepted values: Integer

Max: 4073741824L

Min: 1024

Default: 10485760

Metric: Bytes

Note

In the case of HTTP/0.9, no headers get transmitted.

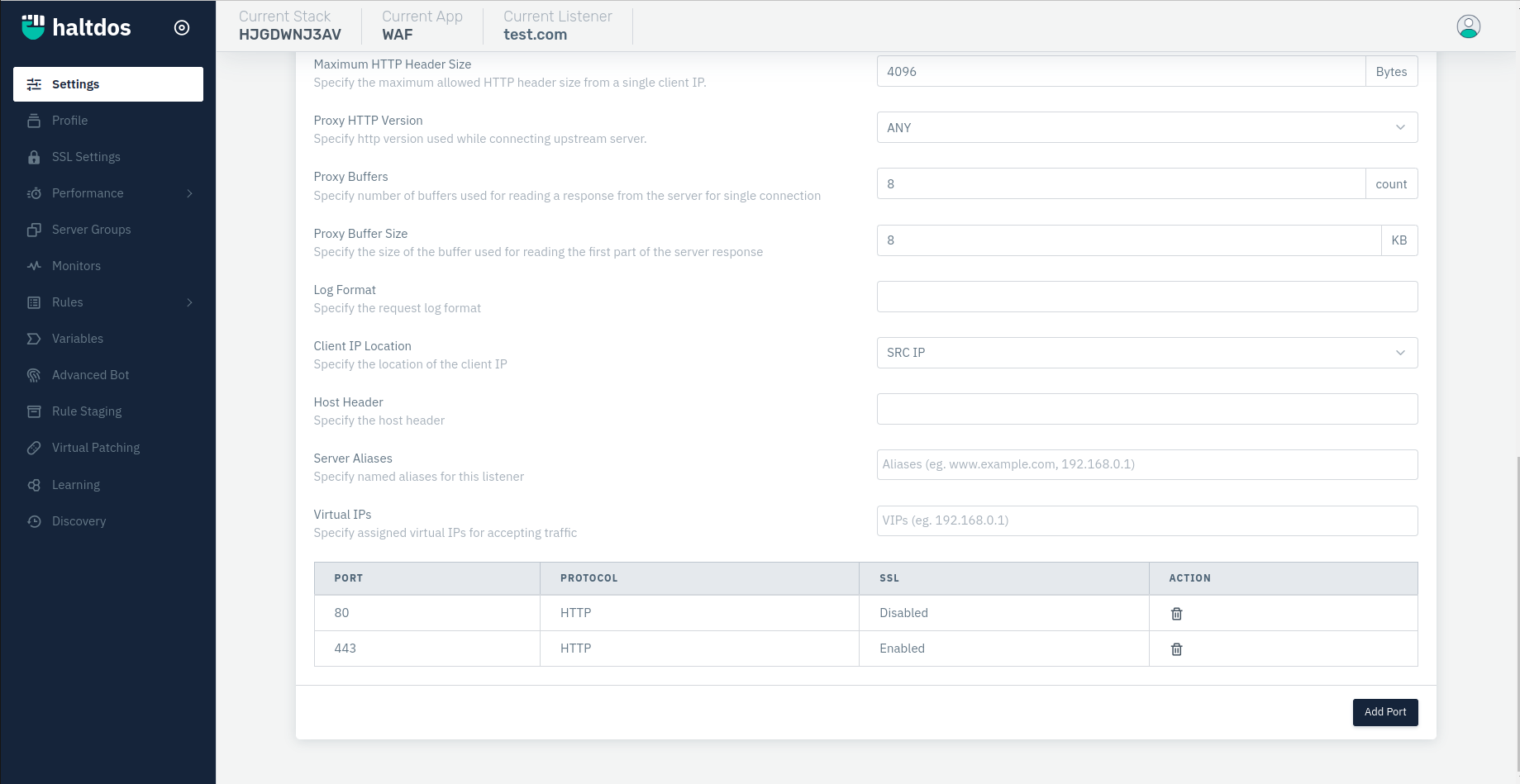

Maximum HTTP Header Size

This field specifies the maximum allowed HTTP Header size (in bytes) from a single client IP. If size exceeds, then the request gets dropped. By default, it is 4096 bytes.
It comprises types, capabilities, and versions of the browser that makes the request. These elements help in returning compatible data.

    Accepted values: Integer

Max: 40960

Min: 1024

Default: 4096

Metric: Bytes

**Proxy HTTP Version **

This setting allows specifying the HTTP version used when connecting to the upstream server. It determines which version of the HTTP protocol is utilized for communication between the proxy server and the upstream server.

    Accepted values: ANY, HTTP 1.0, HTTP 1.1.

Default: ANY
Proxy Buffers

This option specify the number of buffers used for reading a response from the server for a single connection. (Proxy buffers refer to memory buffers used by a proxy server to temporarily store data during the process of receiving, processing, and forwarding requests and responses between clients and backend servers.)

    Accepted values: Integer

Max: 64

Min: 8

Default: 8

Metric: Count

Proxy Buffer Size

This option specify the size of the buffer used for reading the first part of the server response. Proper value can cause improper utilization of proxy buffer optimally for each request.

    Accepted values: Integer

Max: 4096

Min: 8

Default: 8

Metric: KB

Log Format

This option specify the request log format.

    Accepted values: String

Default: NULL
Client IP Location

This option specify the location of the client IP.

    Accepted values: SRC-IP / X-FORWARED-FOR / X-REAL-IP / X-PROXYUSER-IP

Default: SRC IP
  • X-FORWARDED-FOR header contains the IP address of the client that initiated the request, allowing the destination server to identify the original client's IP address even though the request was forwarded through intermediaries.

  • X-REAL-IP Similar to the X-Forwarded-For header, the X-Real-IP header is typically added by the proxy server or load balancer to the HTTP request before forwarding it to the destination server.

  • X-PROXYUSER-IP header likely contains the IP address of the client that initiated the request, allowing the backend server to identify the true client IP address. However, since it's a custom header, its usage and interpretation may vary depending on the specific configuration of the proxy server or load balancer.

Host Header

This option specify the host header allowed by the backend, if it's different from the listener subdomain. This allows the incoming request to alter the host header in each request and transmit it to the backend server.

    Accepted values: String

Default: Blank

It's used by the client to specify the domain name of the server it's attempting to connect to and the port number if it's different from the default (80 for HTTP and 443 for HTTPS).

Server Aliases

This option specify aliases means familiar name for the listener.

    Accepted values: String

Default: Blank
Virtual IPs

This option specify assigned virtual IPs for accepting traffic.

    Accepted values: IP

Default: Blank
Port

This option helps you to add HTTP/S ports for Advance Settings. Here you can be unique port either HTTP or HTTPS enabled configuration without changing backend server port.

Port This option specify assigned virtual IPs for accepting traffic.

    Accepted values: Integer

Default: Blank

Protocol This option used to select protocol

    Accepted values: HTTP

Default: HTTP

SSL Enabled This option used to select whether the SSL enabled or Disabled, that is uploaded by the user in the SSL Certificate section.

    Accepted values: True / False

Default: False

setting

Note

Proxy Buffer and Proxy Buffer are sensitive configurations that can affect applications that should be configured with prior knowledge.
