Upstream Rules

You can switch between your server groups by creating upstream rules.

Overview​

If a user has defined server groups and wants to use different groups depending upon different conditions then he can make use of Upstream Rules. For example, if a user wants its /API calls to be served by server-group "API" and console by "DEFAULT" then he can create a rule with a search pattern and search location as URL/Header/Cookie/Body/Arguments

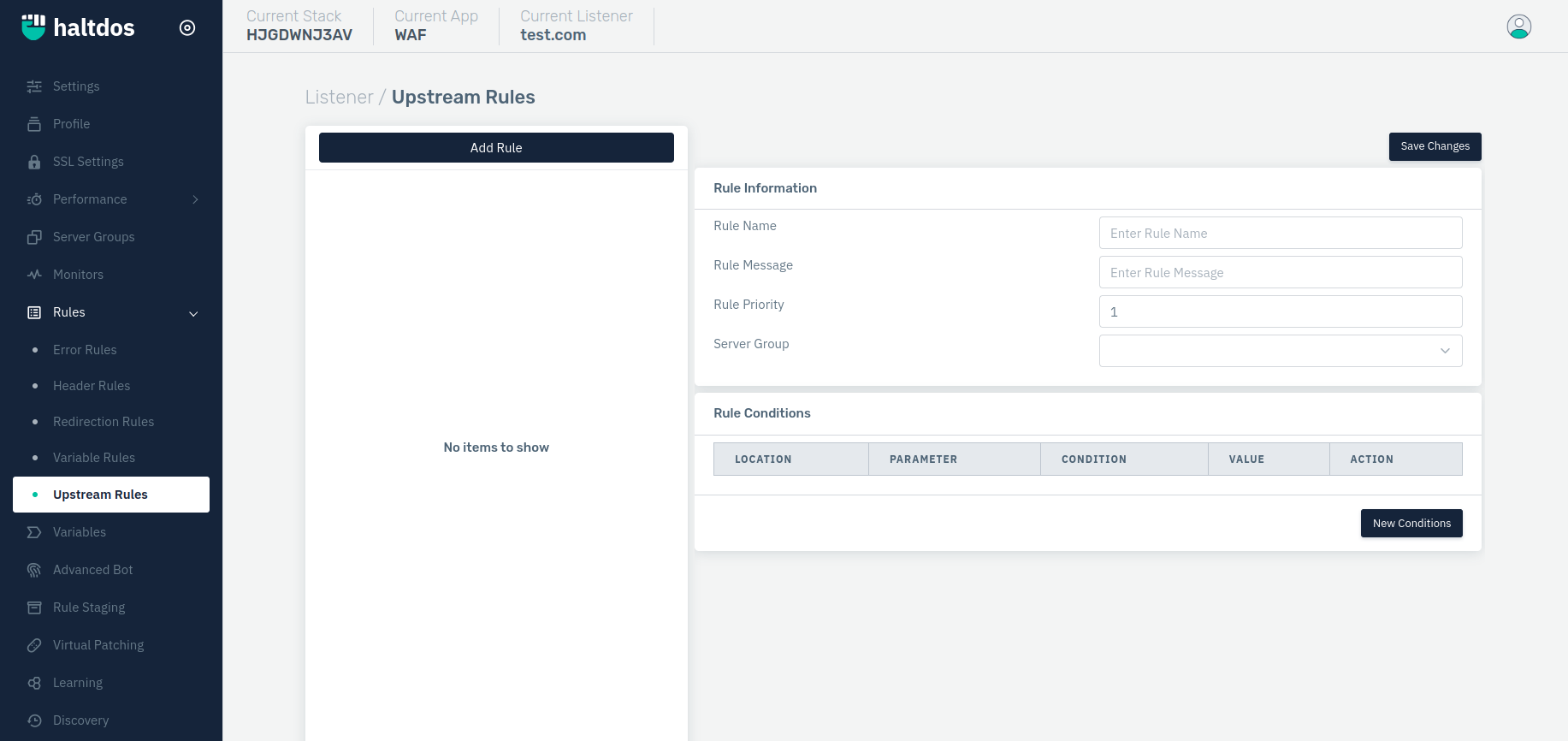

upstream rules

How to Use:​

  1. Go to WAF > Listeners > Rules > Upstream Rules
  2. Create rules with different conditions
  3. Click on Save Changes

Description​

Rule Name​

Users are allowed to specify a user-friendly name to identify the rule. The rule name takes alphanumeric input.

    Accepted values: String

    Default: Blank
Message​

The user can add a short description of the rule. The description would explain the purpose of the rule.

    Accepted values: String

    Default: Blank
Rule Priority​

Users are allowed to set the priority of the rule. If two rules have the same priority, then selection will be random.

    Accepted values: Integer

    Default: 0
Server Group​

Select the server group.

    Accepted values: List of Server group

    Default: Blank
Add Condition​

The user can specify some request/response-based conditions which can be used as mandatory conditions to be fulfilled to apply the rule.

To configure the parameter of the conditions please refer to the following link: Conditions
