XML Policy
Configure XML Security Policy for XML based API web service.
Overview
XML Policy is a feature of Haltdos WAF. It allows application owners to block unwanted requests that feature malware XML documents or documents bigger than the allowed size. The owner can set their Minimum & Maximum size limit for the XML document.
How to Use:

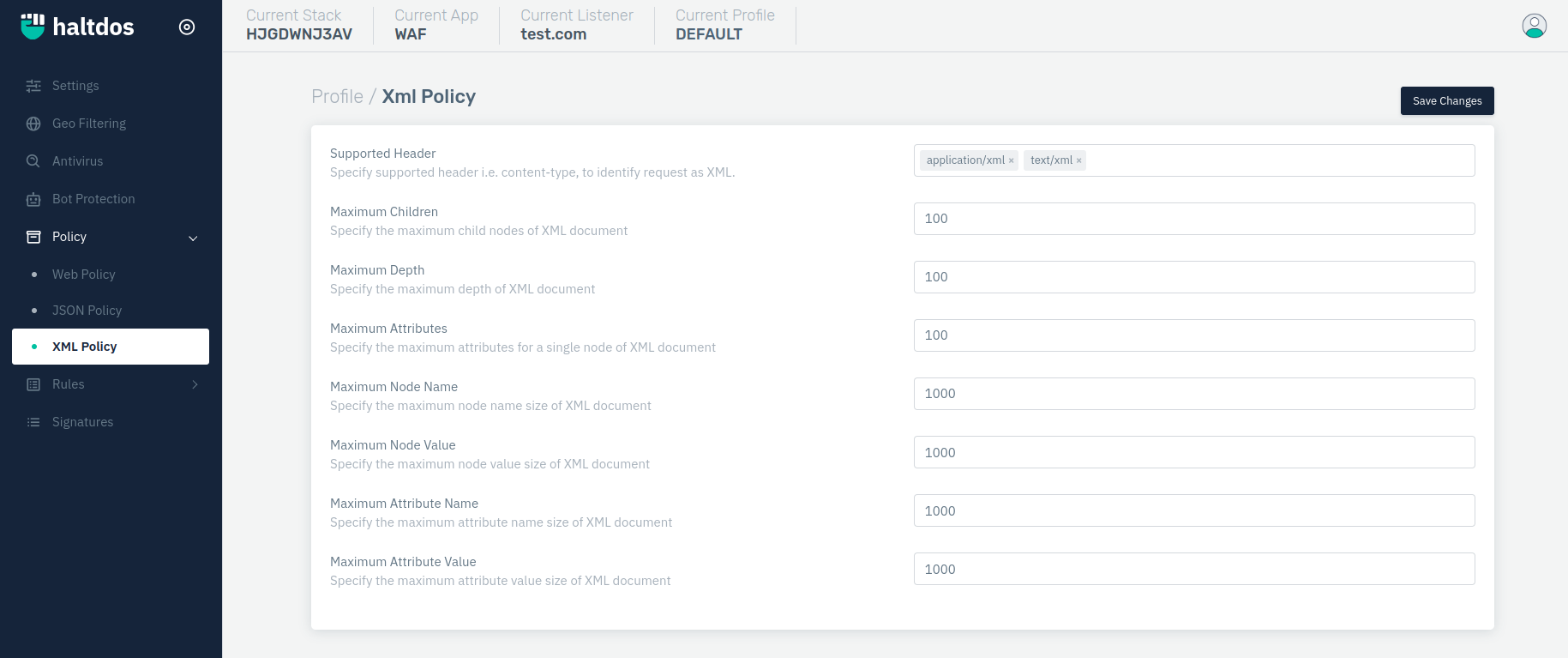

- Go to WAF > Listeners > Profiles > Policy > XML Policy.
- Configure your settings.
- Click on Save Changes.
Example :
<bookstore>
<book category="children">
<title>Harry Potter</title>
<author>J K. Rowling</author>
<year>2005</year>
<price>29.99</price>
</book>
<book category="web">
<title>Learning XML</title>
<author>Erik T. Ray</author>
<year>2003</year>
<price>39.95</price>
</book>
</bookstore>
Description
Supported Header
Users are allowed to specify supported header i.e. content-type, to identify request as XML.
Accepted values: String
Default: application/xml / text/xml
Maximum Children
This field specifies the maximum child nodes of the XML document. In the above example, Tag <book> has 4 children. An XML document can have a minimum of 1 child and a maximum of 10000 children.
Accepted values: Integer
Max: 10000
Min: 0
Default: 100
Maximum Depth
This field specifies the maximum depth of an XML document. In the above example, maximum depth is 2, Tag <book> is at depth 1 & children are at depth 2. An XML document can have a minimum depth of 1 and a maximum depth up to 1000000.
Accepted values: Integer
Max: 1000000
Min: 0
Default: 100
Maximum Attributes
This field specifies the maximum attributes for a single node of an XML document. In the above example, the maximum attribute is 1, Tag <book> has 1 attribute. An XML document can have a minimum of 1 attribute and a maximum of 1000 attributes.
Accepted values: Integer
Max: 1000
Min: 0
Default: 100
Maximum Node Name
This field specifies the maximum node name size of an XML document. In the above example, the maximum node name is 9, Tag <bookstore> length is 9. An XML document can have a minimum of 1 node name size and a maximum of 10000 node name size.
Accepted values: Integer
Max: 10000
Min: 0
Default: 1000
Maximum Node Value
This field specifies the maximum node value of the XML document. In the above example, the maximum node value is 12, Tag <title> has a value of Harry Potter of length 12. An XML document can have a minimum of 1 node value and a maximum of 1000000 node values.
Accepted values: Integer
Max: 1000000
Min: 0
Default: 1000
Maximum Attribute Name
This field specifies the maximum attribute name size of an XML document. In the above example, the maximum attribute name is 8, Tag <book> has an attribute category of length 8. An XML document can have a minimum of 1 attribute name and a maximum of 10000 attribute names.
Accepted values: Integer
Max: 10000
Min: 0
Default: 1000
Maximum Attribute Value
This field specifies the maximum attribute value size of the XML document. In the above example, the maximum attribute value is 8, Tag <book> has an attribute category of length 8. An XML document can have a minimum of 1 attribute value and a maximum of 1000000 attribute value.
Accepted values: Integer
Max: 1000000
Min: 0
Default: 1000
