Virtual LAN

Creating and managing multiple VLANs on Haltdos appliance

This section shows how users can create and maintain multiple VLANs on Haltdos appliance / virtual instance. Apart from creating VLANs, users can also configure custom routing and route policies on traffic coming on VLANs.

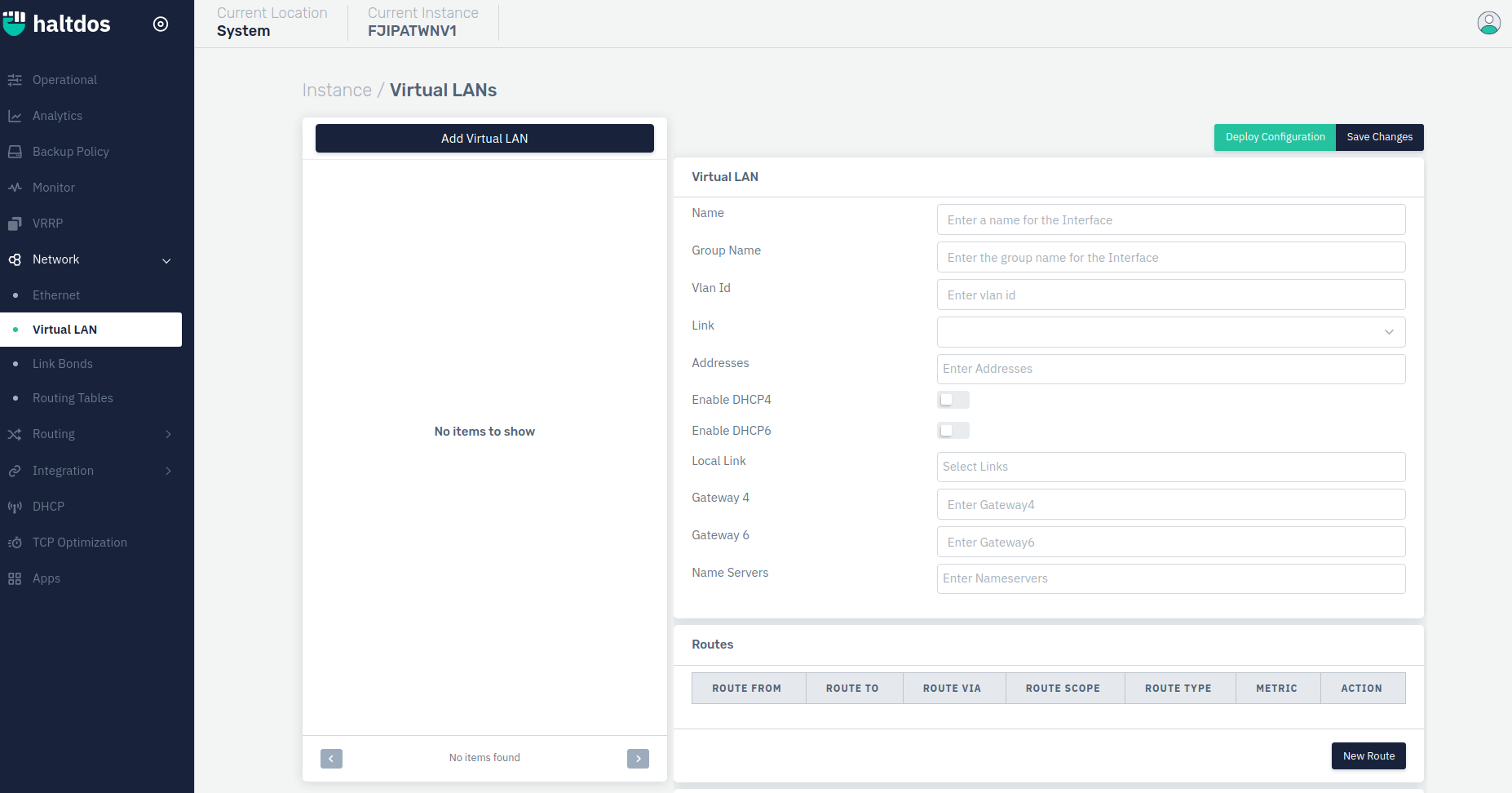

vlan

How to Use:​

  1. Go to Stack > Instances > Network > VLans
  2. Configure your settings
  3. Click Save Changes

Description​

Name​

This option allows users to set a user-friendly name for the VLANs.

    Accepted values: String

    Default: Blank
Group Name​

This option allows users to set a group name that group name will be identified by the application hence it can be same as Name.

    Accepted values: String

    Default: Blank
VLAN ID​

This option allows users to write a VLAN ID in decimal number system. This VLAN ID tag will be added into the packets that are moving outside the interface.

    Accepted values: Integer

    Default: Blank

This link option allows users to select interface for the VLAN configuration.

    Accepted values: String

    Default: Blank
Addresses​

This option allows users to set an IP addresses to the interface. This Interface should not be configured from the Ethernet section again.

    Accepted values: String

    Default: Blank
Enable DHCP4​

This option allows users to enable automatic IPv4 address configuration using DHCPv4.

    Accepted values: Enable / Disable

    Default: Disable
Enable DHCP6​

This option allows users to enable automatic IPv6 address configuration using DHCPv6.

    Accepted values: Enable / Disable

    Default: Disable

This option allows users to set the local link for the interface.

    Accepted values: IPv4 / IPv6

    Default: Blank
Gateway4​

This option allows users to set an IPv4 gateway address. This gateway address will be used when packet destination address belongs to other networks.

    Accepted values: String

    Default: Blank
Gateway6​

This option allows users to set an IPv6 gateway address. This gateway address will be used packet's destination address belongs to other network.

    Accepted values: String

    Default: Blank
Nameservers​

This option allows users to set the name server or DNS server IP address.

    Accepted values: String

    Default: Blank
