Settings

To set up the Operational Settings for the particular Listener.


Overview

Operational Setting configure different settings of Listener like the network protocol to be used. User can also configure the listener to work as Recursive DNS, Authoritative DNS or Both. Operational Setting specifies the IP address of the Listener. Basically, Operational enables the user to make custom changes on its DNS.

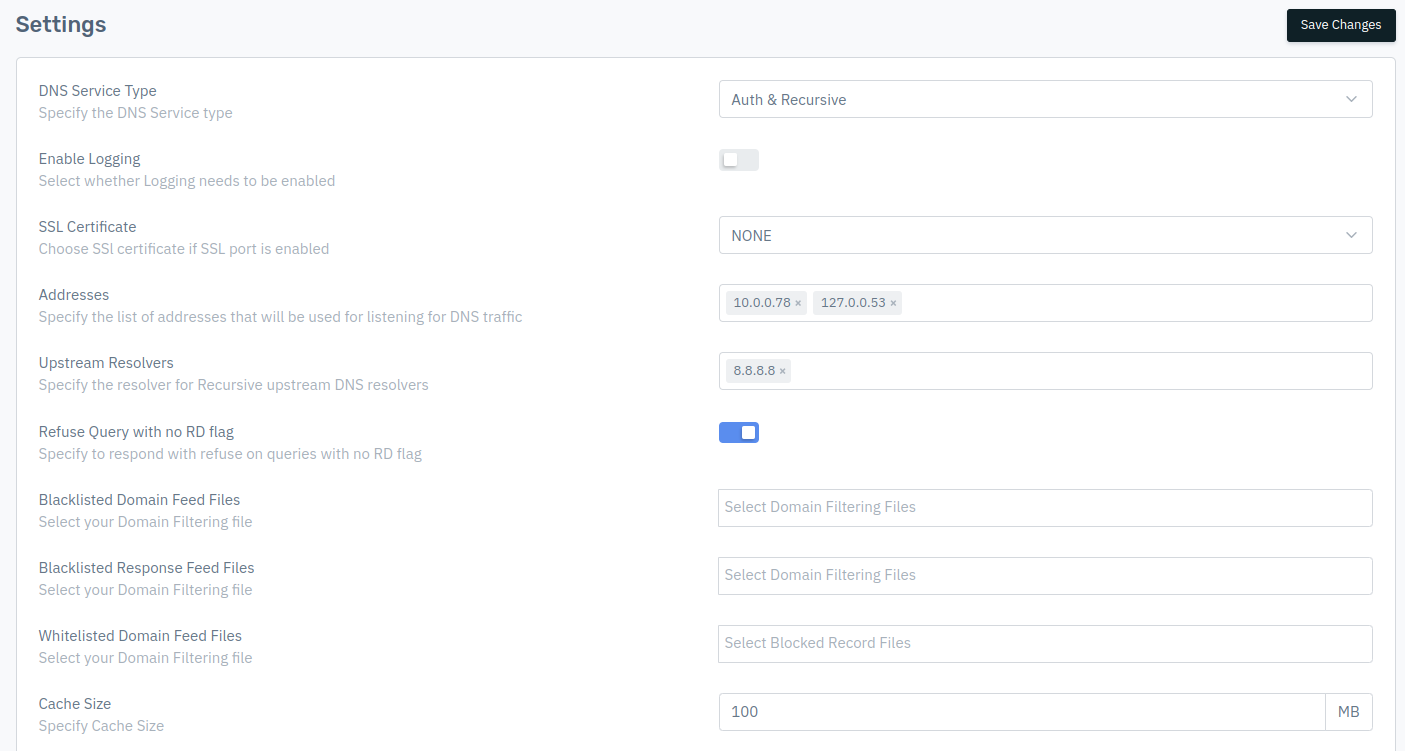

operational-config

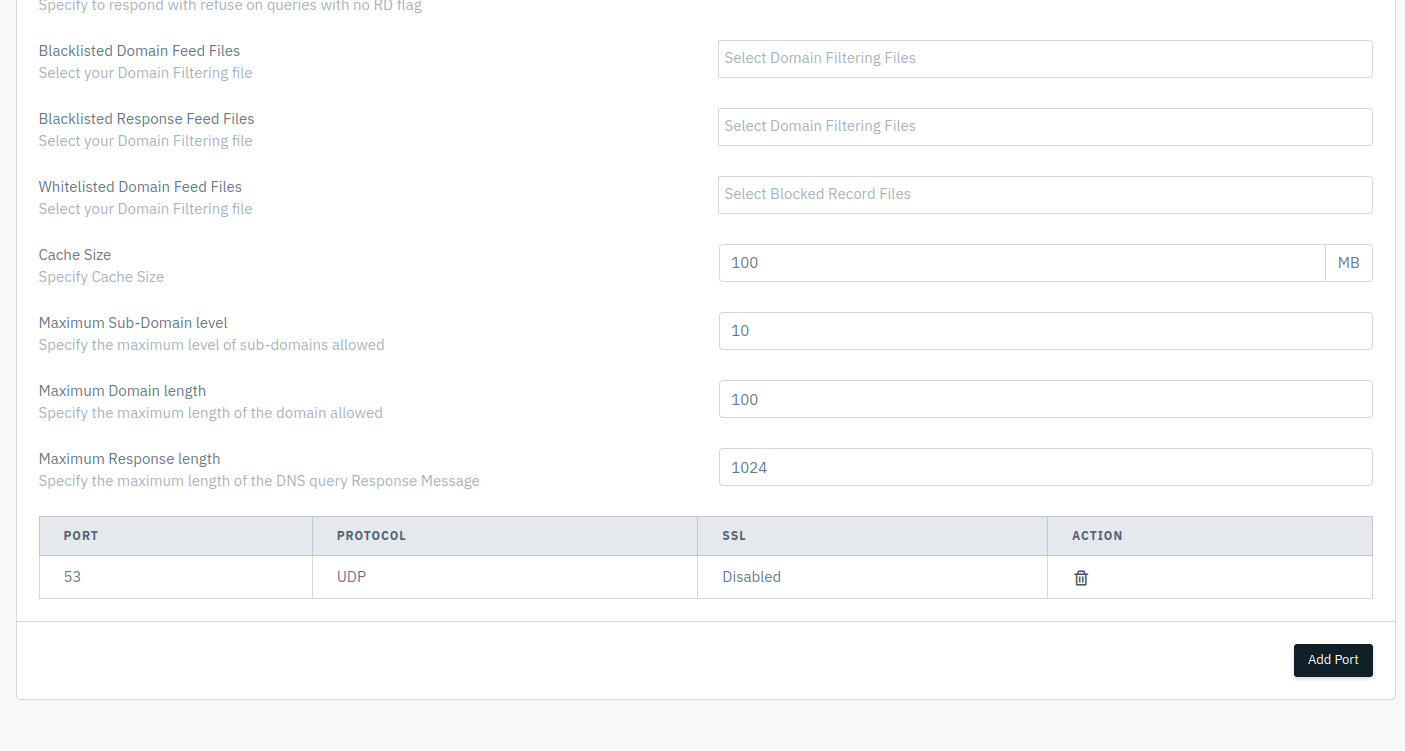

operational-config-modal

How to Use:

  1. Go to Apps > GSLB > Listener > Operational
  2. Configure your settings.
  3. Click Save Changes.

Configure the following parameters to set up the desired settings:

Description

DNS Service Type

Specify the DNS Service type

    Accepted values: Auth & Recursive / Authoritative / Recursive

Default: Recursive

Enable Logging

Select whether Logging needs to be enabled

    Accepted values: Enable / Disable

Default: Disable

SSL Certificate

Choose SSl certificate if SSL port is enabled

    Accepted values: Select SSL

Default: None

Addresses

Specify the list of addresses that will be used for listening for DNS traffic

    Accepted values: Enter Address

Default: Blank

Upstream Resolvers

Specify the resolver for Recursive upstream DNS resolvers

    Accepted values: Enter Address

Default: Blank

Refuse Query with no RD flag

Specify to respond with refuse on queries with no RD flag

    Accepted values: Enable / Disable

Default: Disable

Blacklisted Domain Feed Files

Select your blacklisted FQDN Filtering file

    Accepted values: Select Domain Feed

Default: Blank

Blacklisted Response Feed Files

Select your resposne Filtering file

    Accepted values: Enter Address

Default: Blank

Whitelisted Domain Feed Files

Select your whitelisted FQDN Filtering file

    Accepted values: Select domain filtering file from the drop-down

Default: Blank

Cache Size

Specify Cache Size in MB

    Accepted values: Integer

Default: 100

Maximum Sub-Domain level

Specify the maximum level of sub-domains allowed

    Accepted values: Integer

Default: 5

Maximum Domain length

Specify the maximum length of the domain allowed

    Accepted values: Integer

Default: 100

Maximum Response length

Specify the maximum length of the DNS query Response Message

    Accepted values: Integer

Default: 100

Port

User need to specify the port in the Port Modal

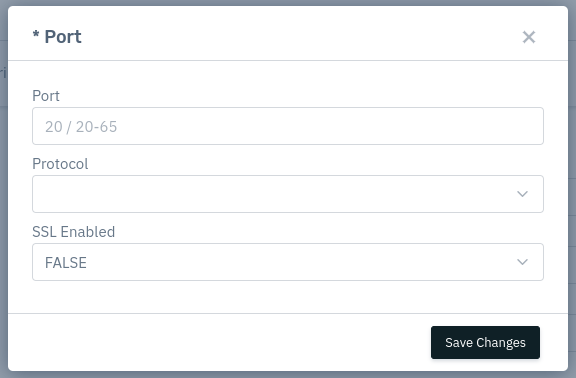

port-modal

Port

Mention the port

    Accepted values: Integer

Default: 53

Protocol

Select Protocol

    Accepted values: TCP / UPD / HTTPS / TLS

Default: UDP

SSL Enabled

Select the SSL whether it need to be enabled or not

    Accepted values: True / False

Default: False
