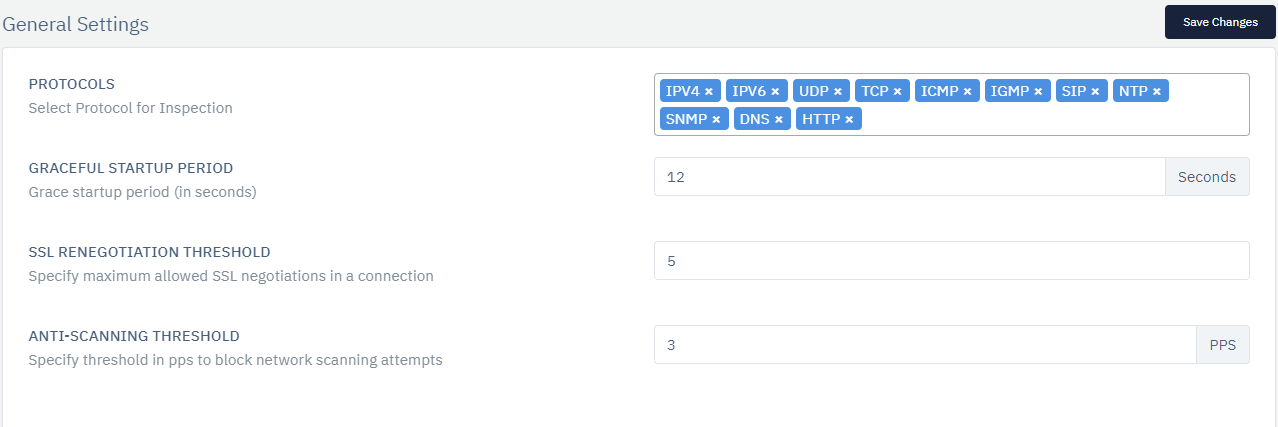

General Settings
For inspect the packet
General settings evaluates the data part and the header of a packet that is transmitted through an inspection point, weeding out any non-compliance to protocol, spam, viruses, intrusions, and any other defined criteria to block the packet from passing through the inspection point.
How to Go:
-
Stack > Resource > DDoS > Profile > General Settings
-
Enable/Disable the settings
-
Click on Save Changes.
| Settings | Accepted Values | Default |
|---|---|---|
| Protocols | Integer | Blank |
| Graceful Startup Period | Integer | 30 |
| SSL Renegotiation Threshold | Integer | 0 |
| Anti-Scanning Threshold | Integer | 5 |
Description:
Protocol
Select the protocol name for inspection of the packets
Graceful Startup Period
Specify the time till which Connection mitigations trigger will wait before starting mitigation on startup (in seconds)
SSL Renegotiation Threshold
Users can specify the maximum allowed SSL negotiations in a connection.
Anti-Scanning Threshold
Users can specify thresholds in pps to block network scanning attempts.
