Network Rules
Network Rules are user-configured rules performed on network interfaces like IP, Port, Domain, etc in order to take action based on the conditions set in the rule.
How to Use
-

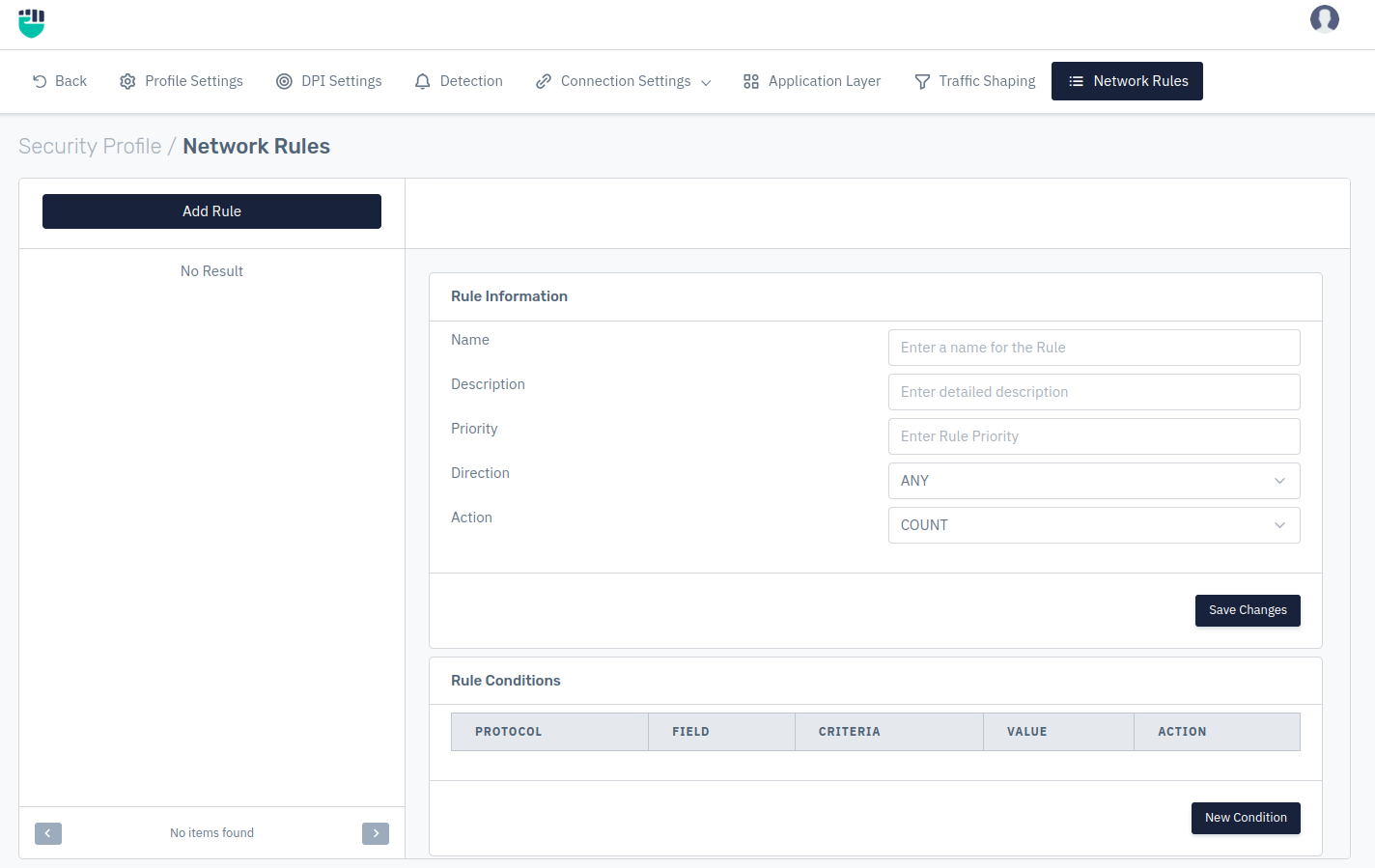

Go to Apps > DDoS > Profile > Network Rules
-
Add network rules with the specific configuration required.
-
Click on Save Changes
Rule Information
Description
Name
Specify the name of the rule
Accepted values: String
Default: Blank
Rule Description
Specify the description for the rule
Accepted values: String
Default: Blank
Priority
User can specify the priority of the rule. In case of multiple rules, user can set the priority accordingly
Accepted values: Integer
Default: 0
Direction
Specify the direction of the rule on which rule can apply i.e. Any, Inbound, Outbound
Accepted values: Any / Inbound / Outbound
Default: Any
Any: Rule is applicable on both Inbound as well as Outbound traffic
Inbound: Rule is applicable on Inbound traffic only
Outbound: Rule is applicable on Outbound traffic only
Action
In this field user can select the action which should be applicable on the rule
Accepted values: Integer
Default: 0

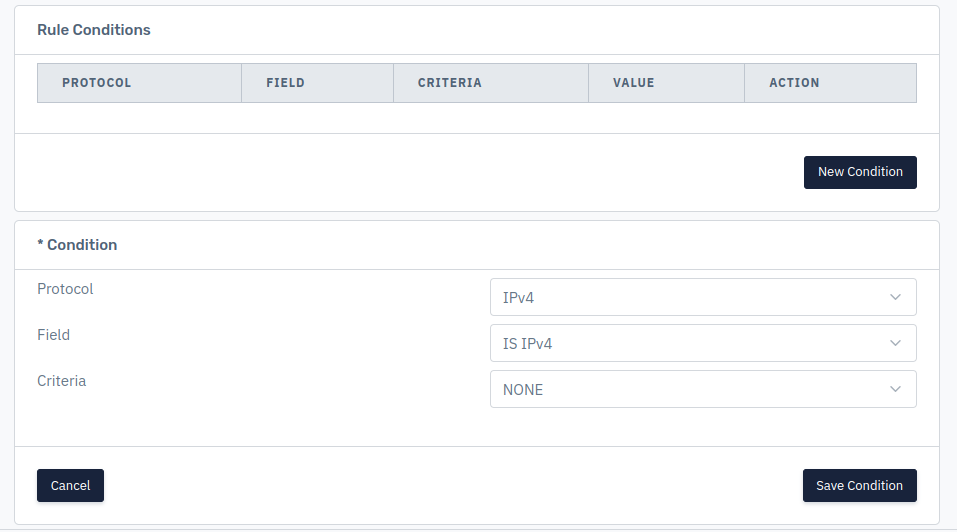

Rule Conditions
Protocol
In this field user can specify the Protocol on which rule will be applicable.
Accepted values: IPV4
Default: IPV4
Field
User can specify the Field according to the selected protocol. Field will be different for the different protocol
Accepted values: IS IPv4
Default: IS IPv4
Criteria
User can specify the Criteria according to the slected field. Criteria will be differnt for the different field
Accepted values: NONE
Default: NONE
