Variable Rules

Overview

If a user wants to extract or set a custom variable, then it can be done using Variable Rules. It can be used in the following:

Form Validation : If a user wants a form field to be immutable, then he can create a variable for that field that is going to be immutable. This variable can be used in form validation to check whether the field is immutable or not. If the field is modified, then the request will be dropped

Note: Any parameter from the Request/Response can be stored in a variable.

How to use:

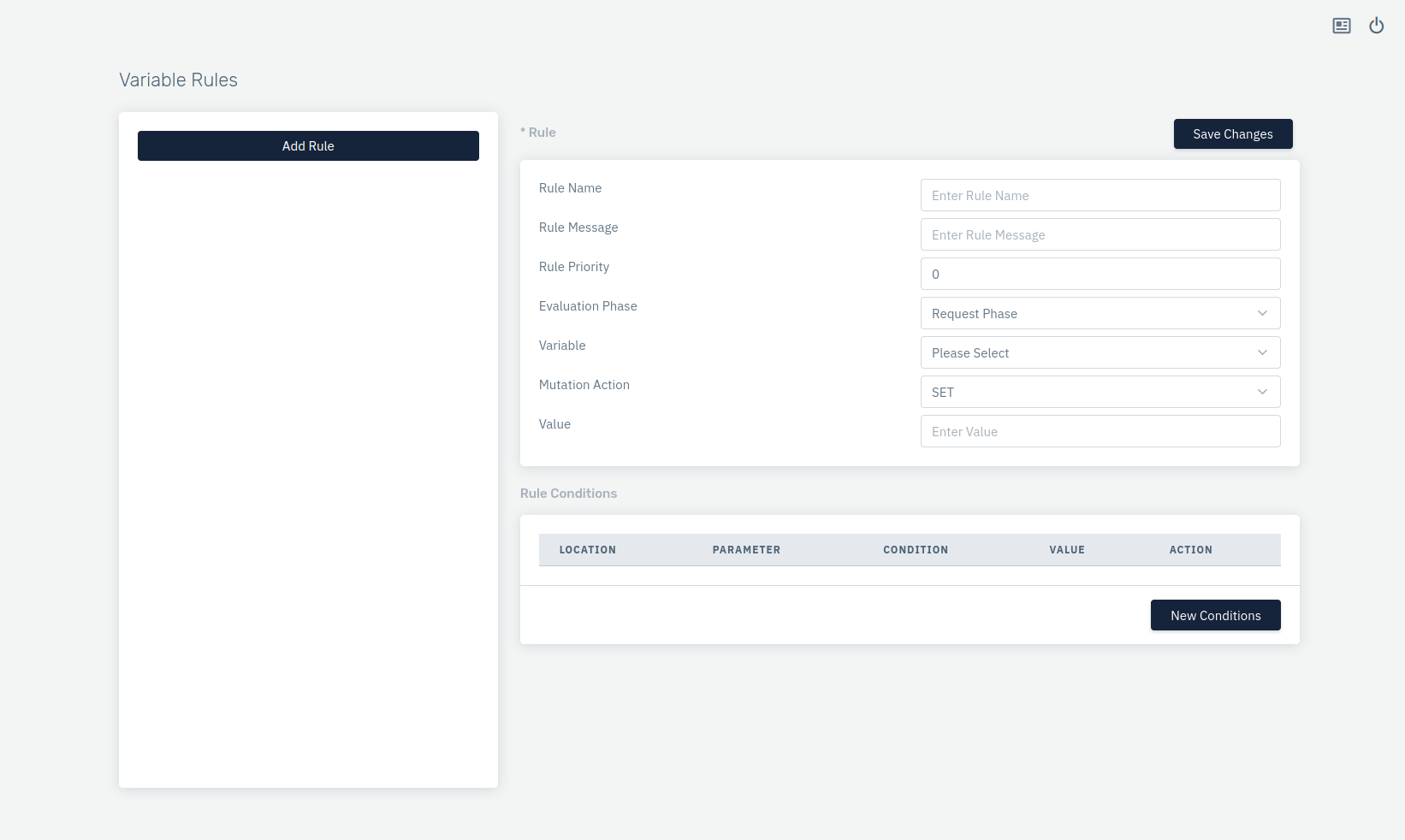

1. Log onto the Haltdos Community WAF portal.
2. Go to WAF > Rules > Variable Rules.
3. Create rules with different conditions.
4. Click on Save Changes.

Parameters	Accepted value	Default
Rule Name	String	Blank
Rule Message	String	Blank
Rule Priority	Integer	0
Evaluation Phase	Drop-Down	Request
Variable	Drop-down	Blank
Mutation Action	Drop-down	SET
Value	String	None

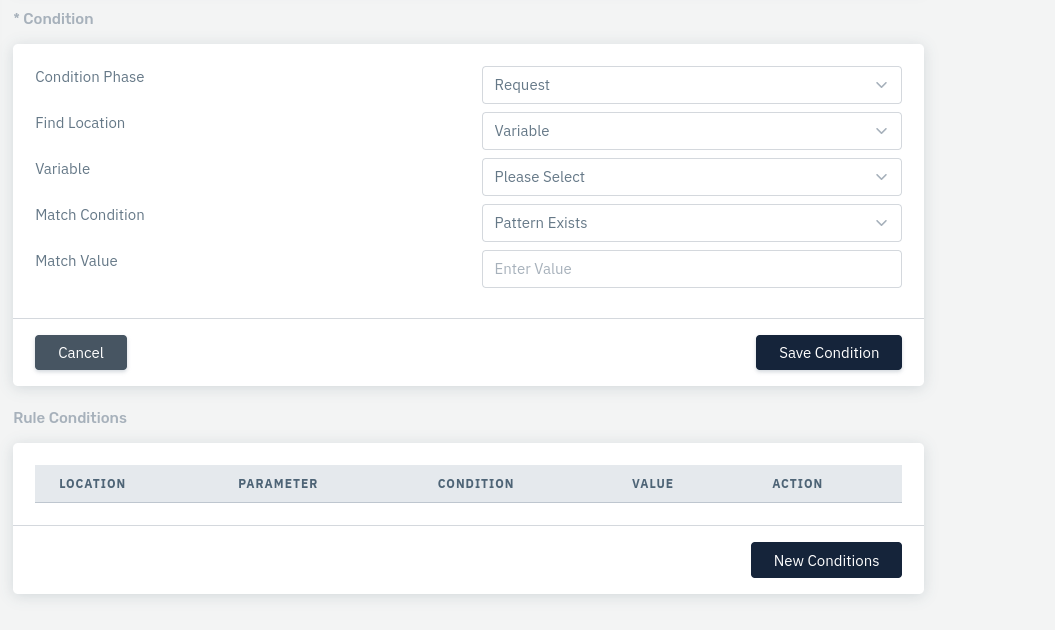

Condition Phase	Drop-down	Request
Find Location	Drop-Down	Variable
Find Parameter	String	Blank
Match Condition	Drop-Down	Pattern Exists
Match Value	String	Blank

Description

Rule Name

Users are allowed to specify a rule name to identify the rule which is to be created. The rule name takes alpha-numeric input.

Rule Message

Users are allowed to specify a rule message containing a detailed description to identify the rule which is to be created.

Rule Priority

It is a numeric field that specifies the priority of the rule in which the rule will be executed while evaluating the request. The lower value of priority means it will be executed first while executing the type of rule. The default value Is 0.

Evaluation Phase

Users can set the evaluation phase either for request coming from end users or for response sending back to end users.

Variable

User can select the variable which should be earlier created under variables.

Mutation action

Users can specify the mutation action.

Value

Users can specify the value for the rule.
