Correlation Rules

Overview

Correlation rules support using compounding logic to make more advanced rules that address your security needs. For example, "(Condition 1 and Condition 2)" means that if Condition 1 and Condition 2 are met, WAF should take the action that's specified in the correlation rule. Different matching conditions within the same rule are always compounded by using 'and'. For example, a rule that uses and might specify to block traffic from a certain IP address, and only if a certain browser is being used.

How to Use:

1. Log onto the Haltdos Community WAF portal.
2. Go to WAF > Rules > Correlation Rules.

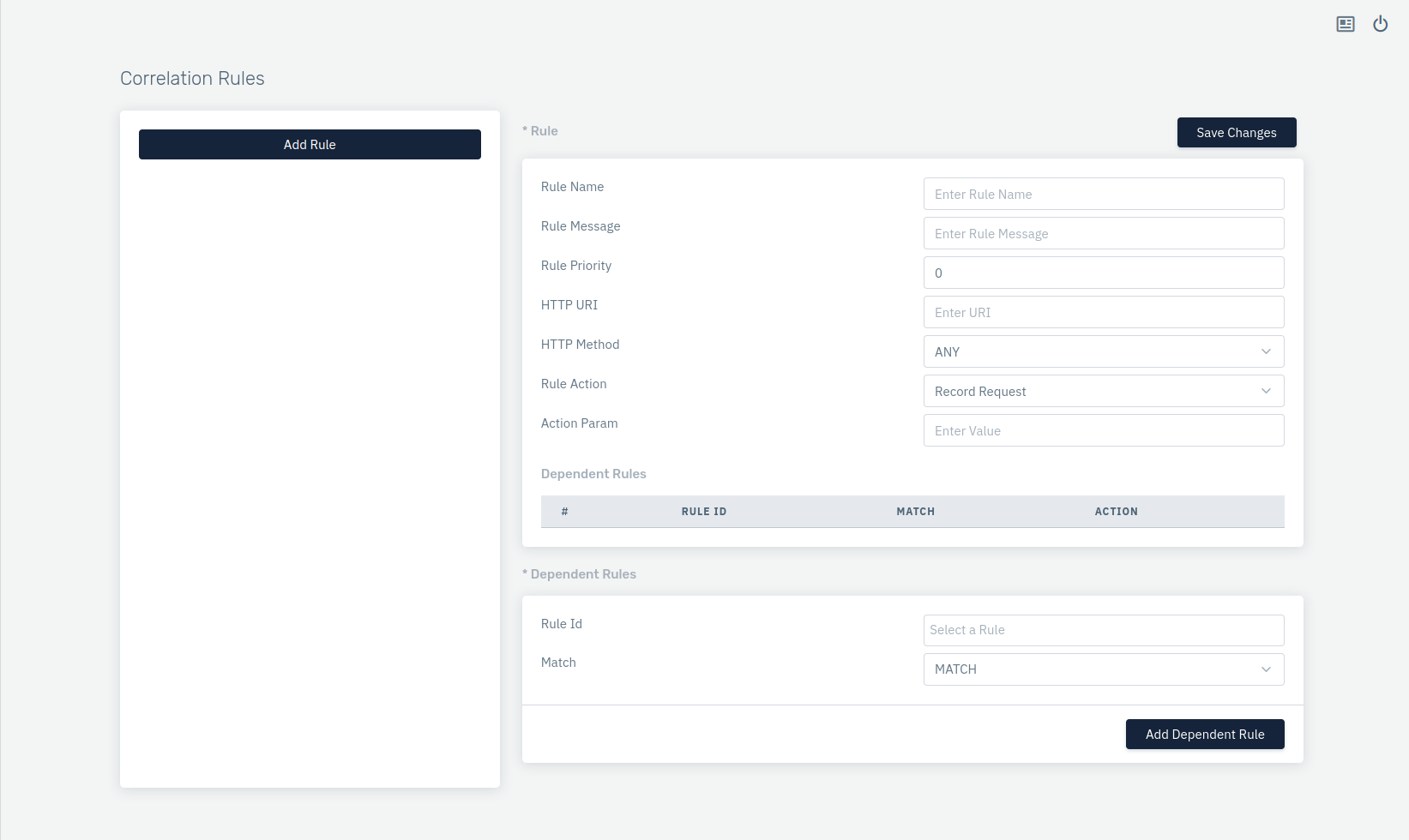

3. Click on Add Rule and set relevant parameters described in the table below.
4. Click on save changes.

Parameters	Accepted value	Default
Rule Name	String	Blank
Rule Message	String	Blank
Rule Priority	Integer	0
HTTP URI	String	Blank
HTTP Method	Drop-down	ALL
Rule Action	Drop-down	Record-request
Redirection URL	String	/
Rule ID	String	Blank
Match	String	Blank

Description

Rule Name

Users are allowe to specify the rule name to identify the rule which is to be created. The rule name takes alpha-numeric input.

Rule Message

Users are allowed to specify a rule message containing a detailed description to identify the rule which is to be created.

Rule Priority

It is a numeric field that specifies the priority of the rule in which the rule will be executed while evaluating the request. The lower value of priority means it will be executed first while executing the type of rule. The default value Is 0.

URI

Users are allowed to specify the URI on which the tamper rule will be applied.

Method

Users are allowed to select the HTTP method for the rule to extract when matched with the request.

Rule Action

The following actions are available to the User-

1. DROP & RECORD REQUEST - If the Request to the subscribed domain matches the Firewall Rule, an event is generated but the request will not be allowed through the WAF.
2. RECORD REQUEST - An event is generated whenever the Request satisfies the Rule, but whenever the request passes through other rules its events are logged by Haltdos.
3. BYPASS REQUEST - If the Request tests positive for the rule, no other rule is tested and the Request will be allowed through the WAF.
4. REDIRECT - If the request satisfies the rule, then the user is redirected to another page.
5. NO ACTION - If the request satisfies the rule, then no action will be performed on the current request.

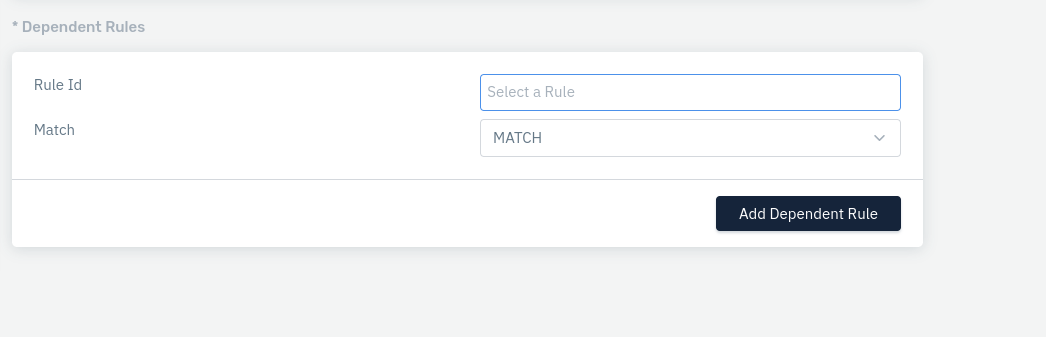

Add Rule Condition

By clicking on Add Rule Condition button, the end-user can add specify the location to be whitelisted. At least, one location is mandatory for this rule.

Rule ID

Users can specify the rule Id for which condition should be created.

Match

Users can specify whether the rule should be matched or not matched.
