Interface Groups

WAN Interfaces Settings

Interface Group is a grouping mechanism of physical Interfaces configured on Link Load Balancer including LAN & WAN. Users can create, modify, delete interface groups, and set desired monitor types for each interface group.

High availability (HA) is the ability of a system to operate continuously without failure for a designated period of time. HA works to ensure a system meets an agreed-upon operational performance level. High availability (HA) is usually required in a system where there is high demand for a little downtime. Haltdos LLB has the option of a logical grouping of physical interfaces for a highly available WAN connectivity structure.

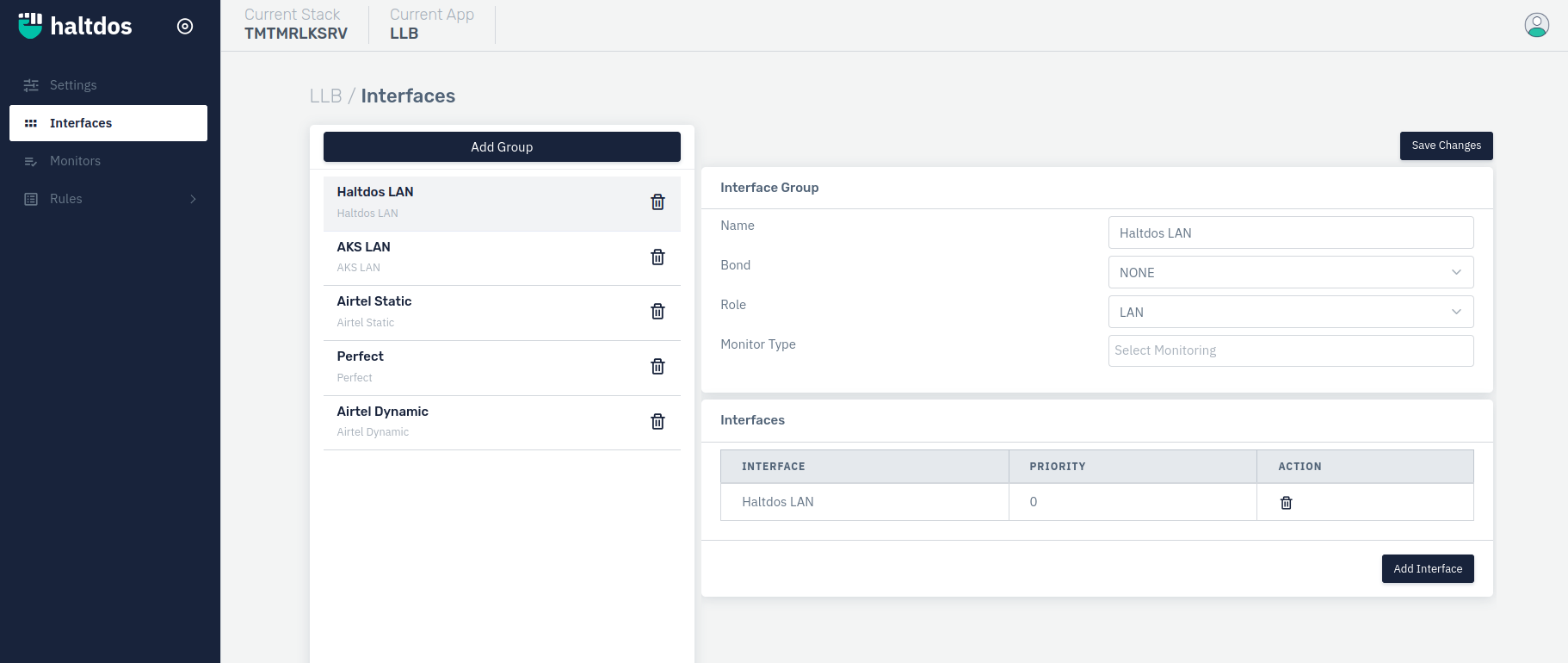

adding_an_interface

How to Use:​

  1. Go to Apps > LLB > Interfaces.

  2. Configure your settings.

  3. Click Save.

Configurethe following parameters to set up the desired settings:

Description:​

Group Name​

It allows the user to add a Group Name.

    Accepted values: String

    Default: Blank
Physical Interfaces​

This option allows the user to select the Physical Interfaces

    Accepted values: Select the Physical Interfaces

    Default: Blank
Monitor Type​

It allows the user to select the rule to monitor the terrific. This monitor rule can be added from Monitors.

    Accepted values: Select Monitor type

    Default: Blank
