Operational Settings
Overview
Operational Settings allow users to fine-tune how SWG handles web traffic and connections. Users can block specific connections based on IP ranges (public or private), control data compression, configure listening host and ports, and adjust proxy modes to suit different deployment scenarios. These configurable parameters enhance the gateway’s performance, security, and adaptability, ensuring optimal operation in diverse network environments.

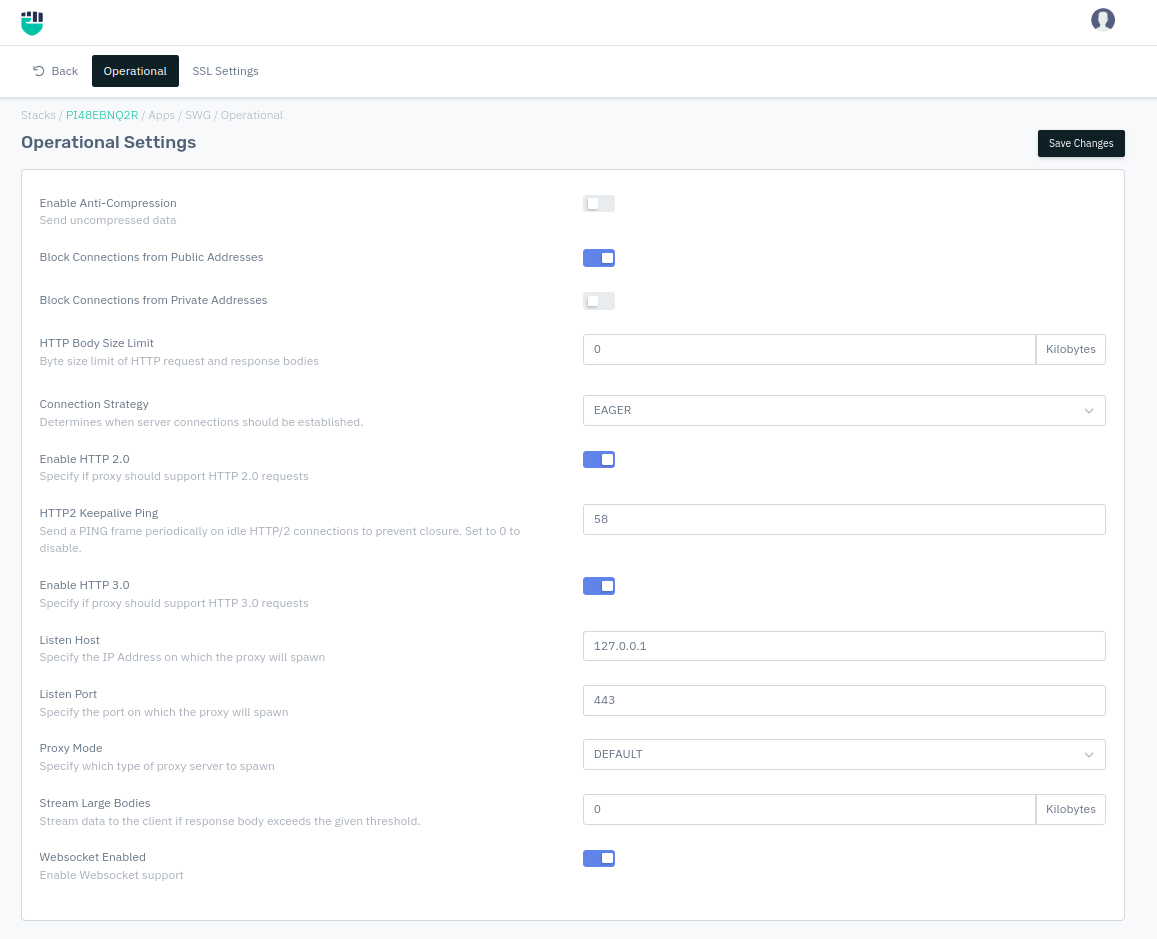

Description
Enable Anti-Compression:
Option to send uncompressed data to maintain data integrity during inspection.
Accepted values: Enable / Disable
Default: Disabled
Block Connections from Public IP Addresses:
Provides control over network access by blocking unwanted connections from Public IP addresses.
Accepted values: Enable / Disable
Default: Enabled
Block Connections from Private IP Addresses:
Provides control over network access by blocking unwanted connections from Private IP addresses.
Accepted values: Enable / Disable
Default: Disabled
HTTP Body Size Limit:
Sets a byte size limit for HTTP request and response bodies to control data flow and resource usage.
Accepted values: Integer
Default: 0
Metric: Kilobytes
Connection Strategy:
Configurable to determine when server connections are established.
Accepted values: EAGER / LAZY
Default: EAGER
-
LAZY : When set to LAZY, Haltdos SWG tries to defer establishing an upstream connection as long as possible. This makes it possible to use server replay while being offline.
-
EAGER: When set to eager, Haltdos SWG can detect protocols with server-side greetings, as well as accurately mirror TLS ALPN negotiation.
Enable HTTP 2.0:
Allows the proxy to support modern HTTP protocols for better performance and enhanced security.
Accepted values: Enable / Disable
Default: Disabled
HTTP2 Keepalive Ping:
Sends periodic PING frames on idle connections to keep them open or terminate when necessary.
Accepted values: Integer
Default: 58
Enable HTTP 3.0:
Allows the proxy to support modern HTTP protocols for better performance and enhanced security.
Accepted values: Enable / Disable
Default: Disabled
Listen Host:
Specifies the IP address on which the proxy will operate.
Accepted values: IP
Default: 127.0.0.1
Listen Port:
Specifies the Port on which the proxy will operate.
Accepted values: Integer
Max: 65535
Min: 0
Default: 443
Proxy Mode:
Configures the type of proxy server to spawn, tailoring the deployment to specific use cases.
Accepted values: DEFAULT / TRANSPARENT / SOCKS5
Default: DEFAULT
Stream Large Bodies:
Streams large responses directly to the client, useful for handling large data transfers.
Accepted values: Integer
Default: 0
Metric: Kilobytes
WebSocket Enabled:
Allows WebSocket traffic through the proxy, providing support for real-time web applications.
Accepted values: Enable / Disable
Default: Disabled
